Product Details

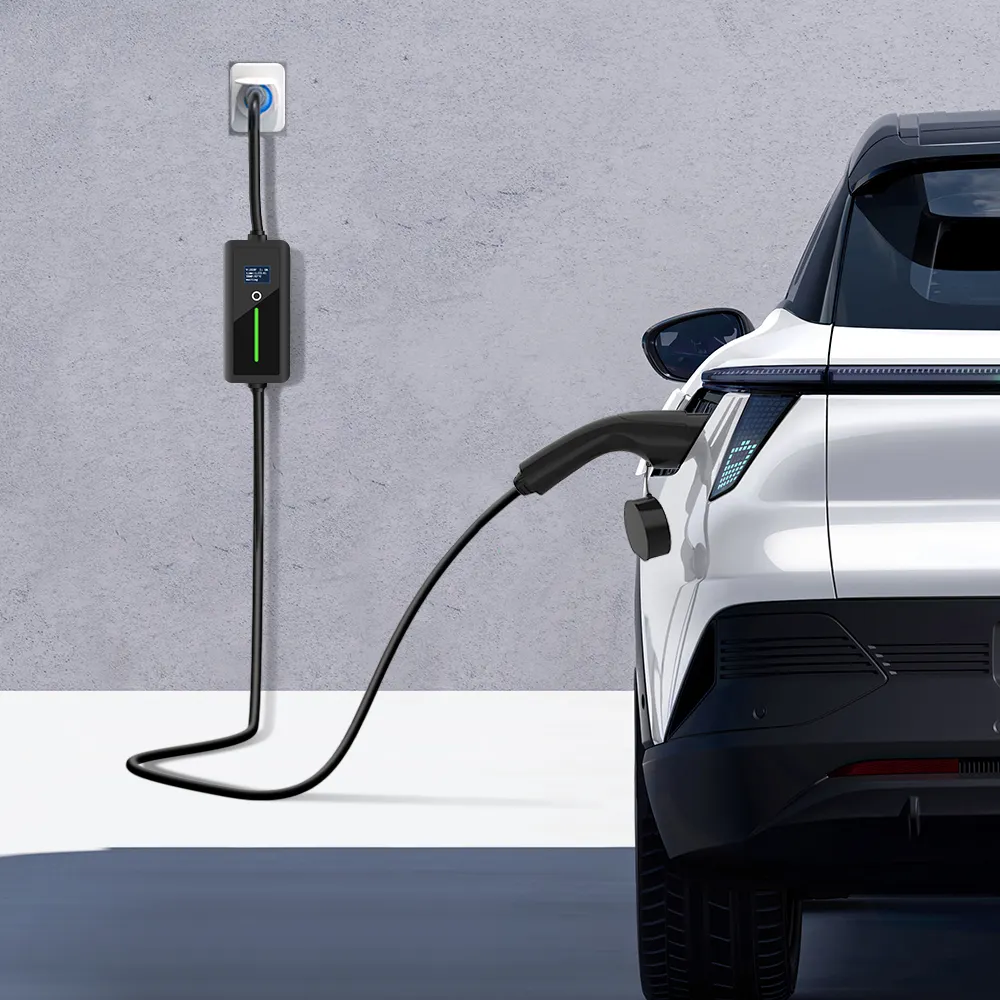

Charge your EV anywhere with this intelligent portable Type 2 AC charger. With an adjustable output from 8A to 32A (3.5KW–7.5KW), a 1.7-inch display screen, and IP67-rated charging gun and control box, it’s built for reliable home and on-the-go charging. Choose between CEE (32A/7.5KW) and Schuko (16A/3.5KW) power plug variants.
Key Features
- Adjustable Charging Speed: Output current adjustable across 5 levels — 8A, 10A, 13A, 16A, and 32A — to match your vehicle’s onboard charger and home circuit capacity.

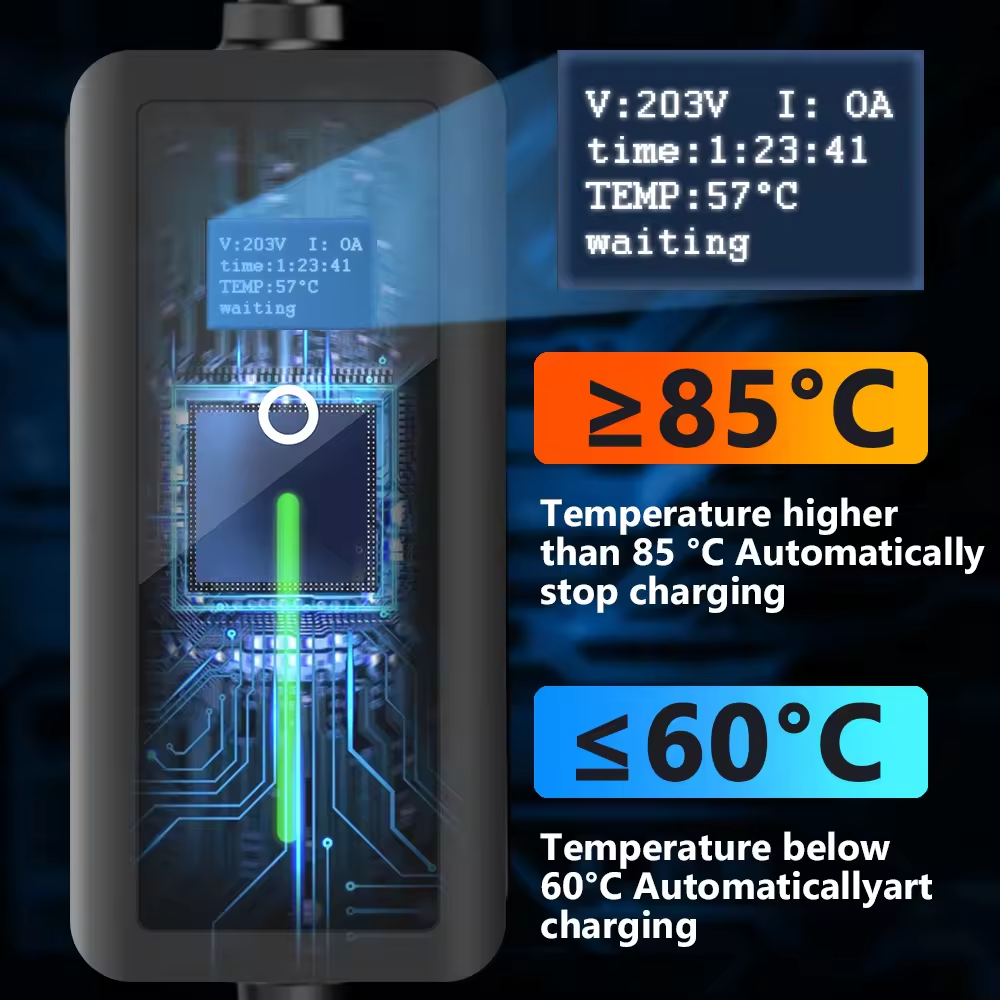

- Smart Display Interface: 1.7-inch display screen with LED indicator light for real-time charging status at a glance.
- Easy-to-Use Controls: Simple button interface lets you set the charging current before connecting the gun to your vehicle — no app or Wi-Fi required.

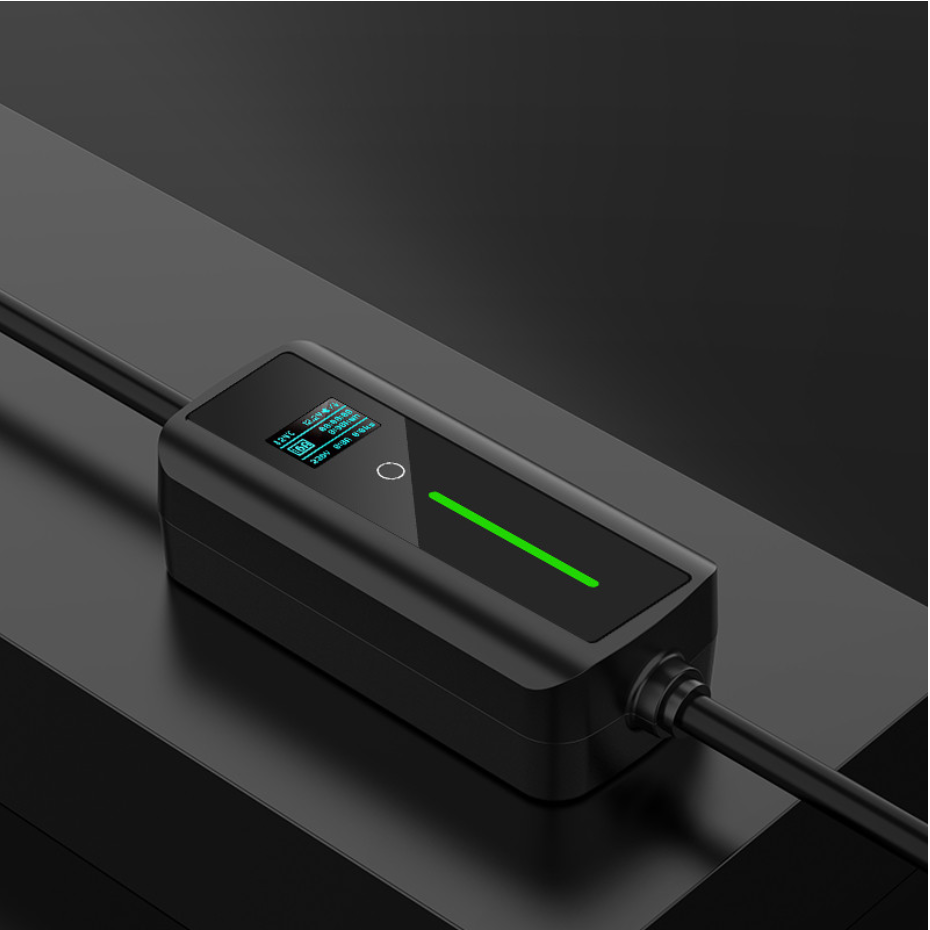

- Portable & Versatile: Compact control box design fits easily in your boot. Charge at home, at work, or anywhere a compatible socket is available.

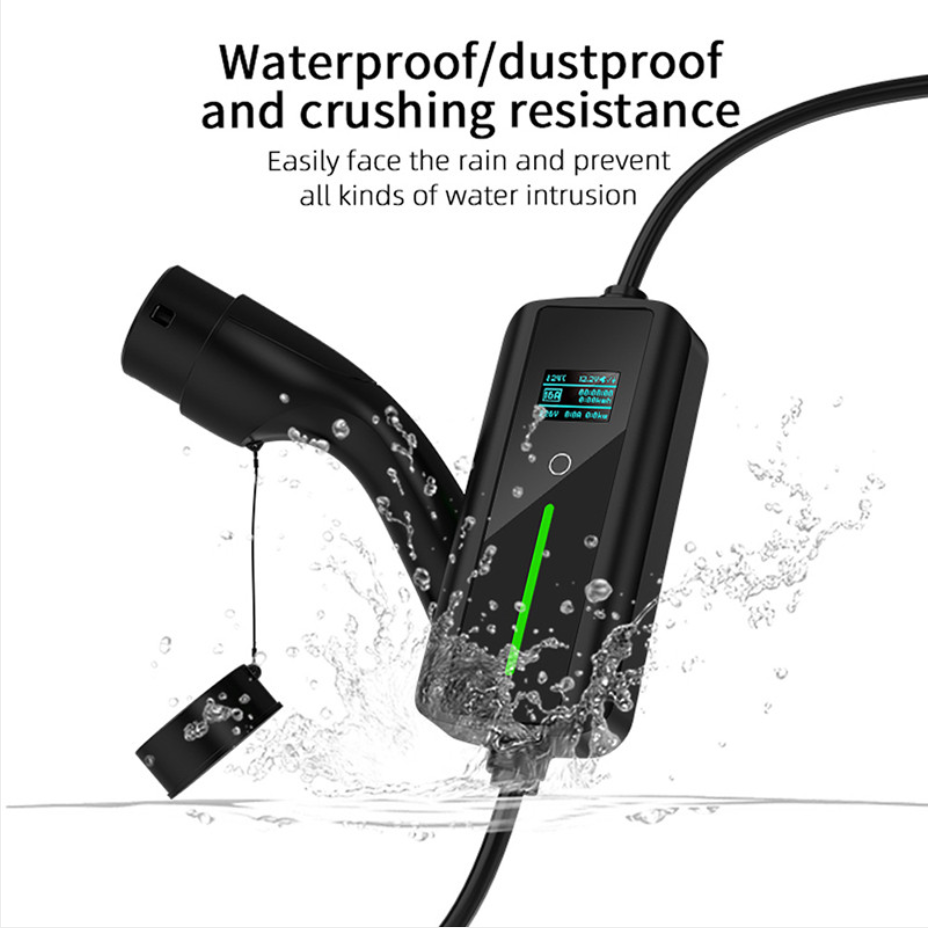

- IP67 Protection: Both the charging gun and control box are rated IP67 — fully dust-tight and protected against temporary water immersion.

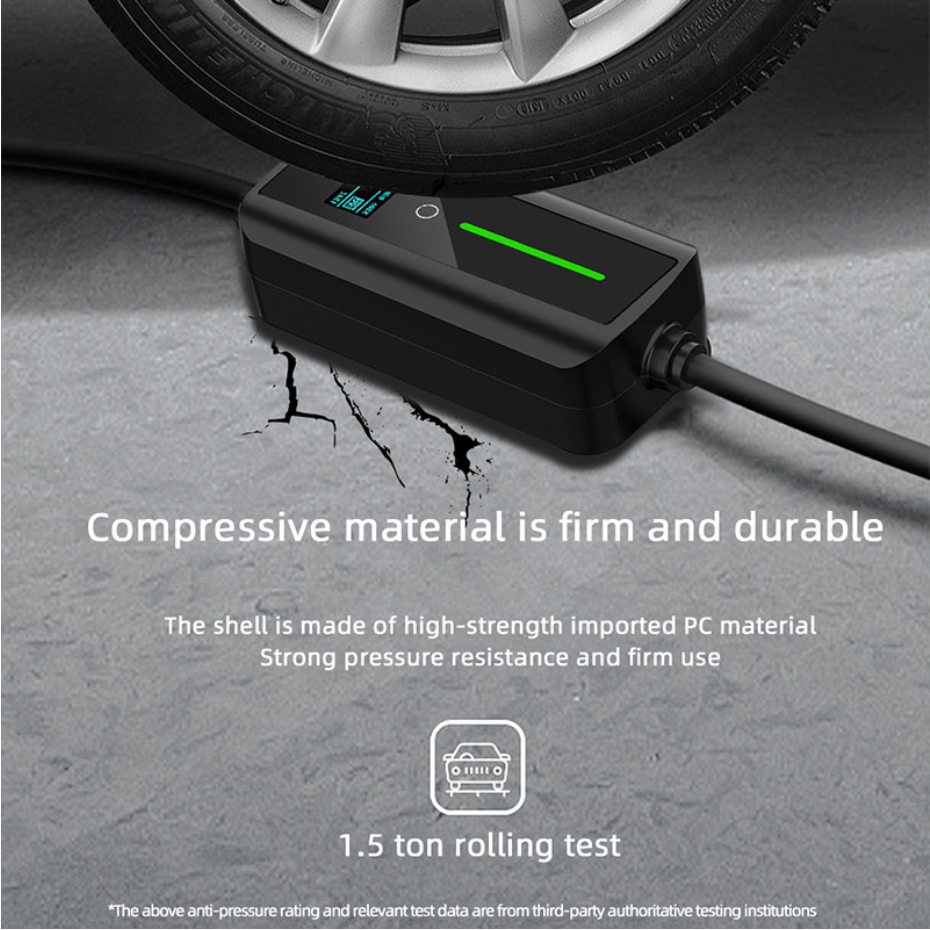

- Durable Construction: PA66 + glass fiber housing with UL94 V-0 flame-retardant rating for long-term reliability in all environments.

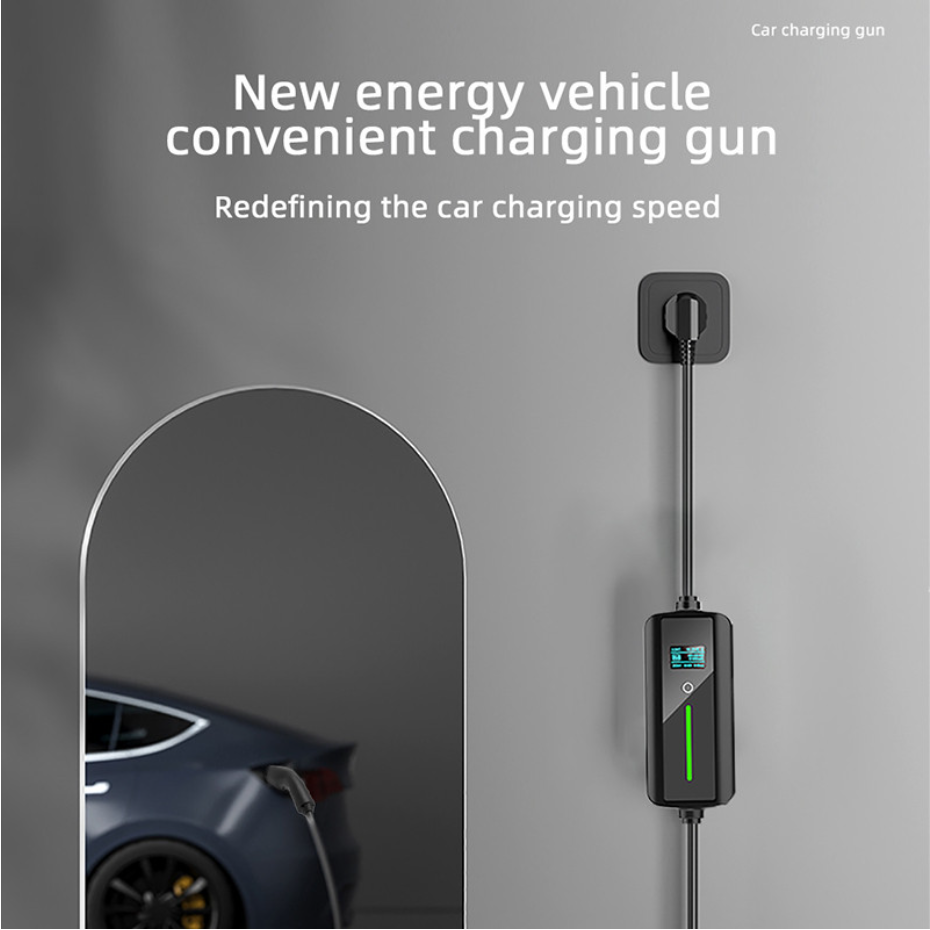

- Flexible Mounting: Supports floor-mounted or wall-mounted installation via included screws.
- Safety Certified: CCC, CE, and RoHS certified. Compliant with IEC 62196 standard.
Power Plug Options

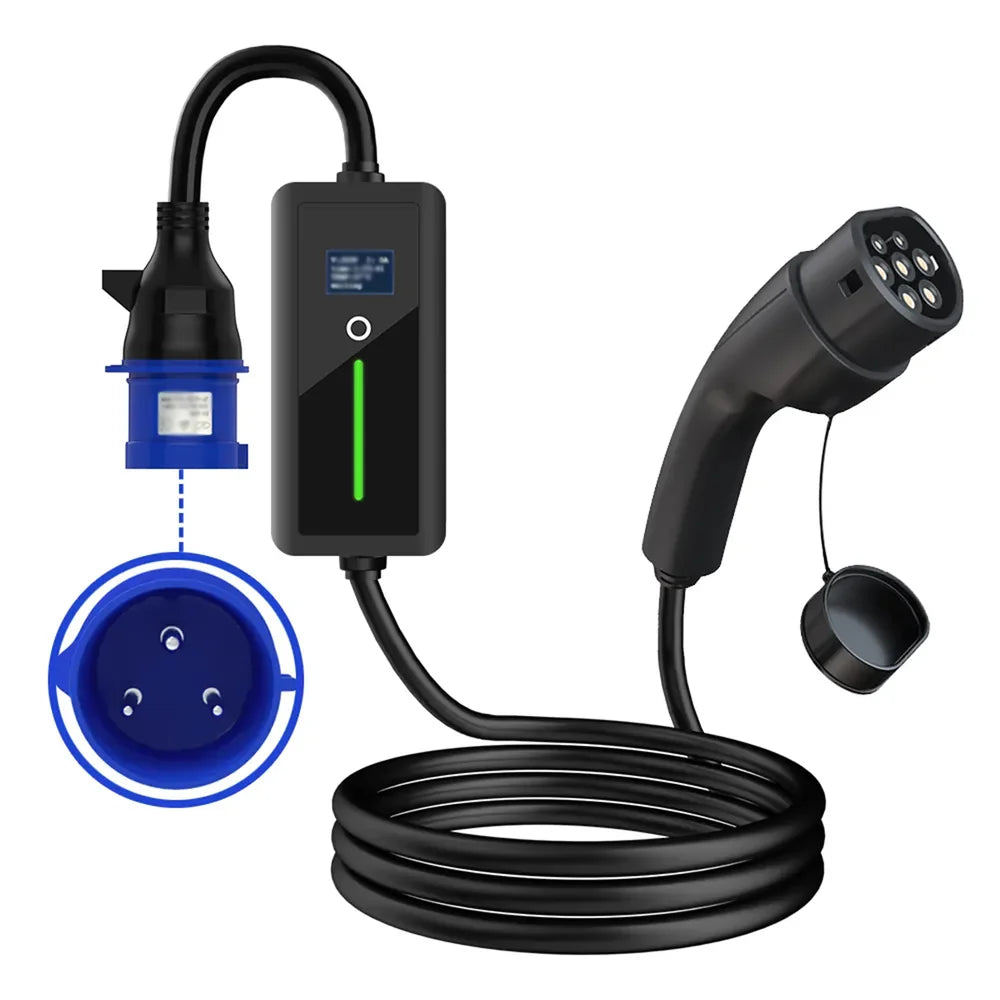

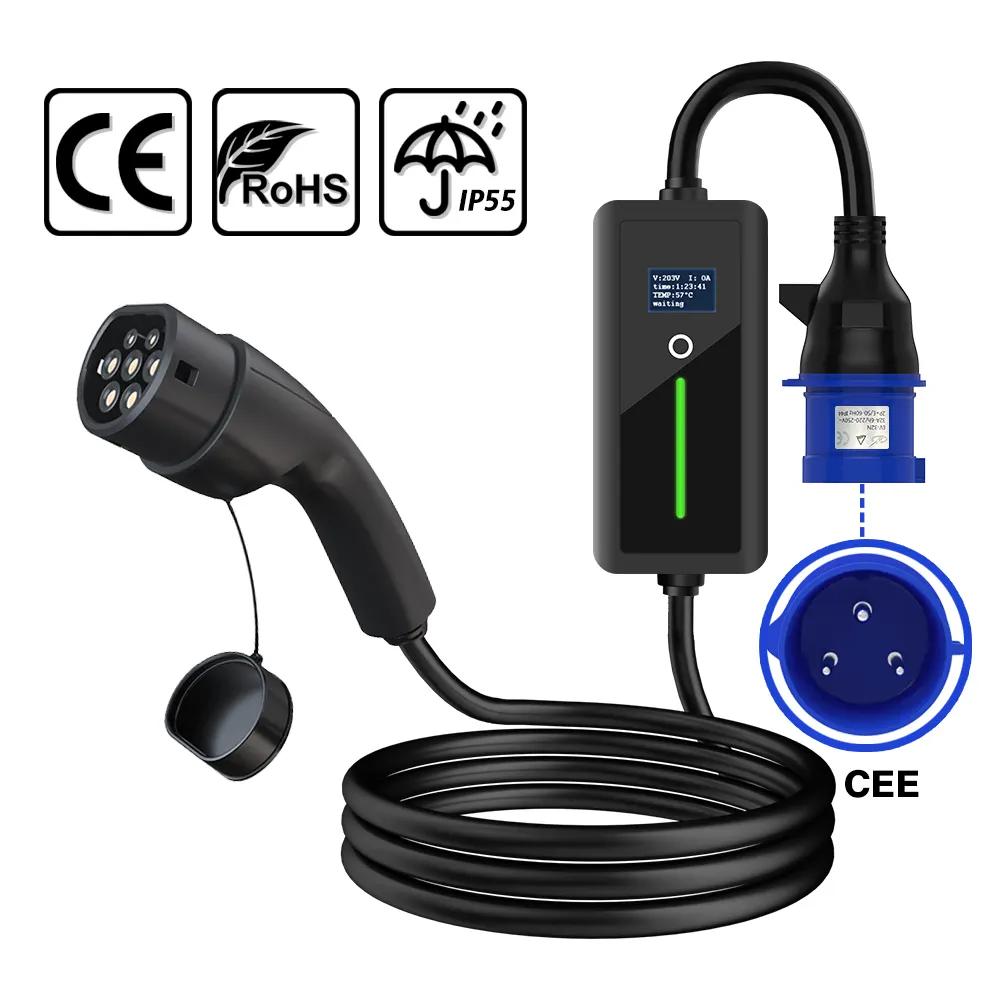

- CEE plug — 32A / 7.5KW: For use with industrial CEE red sockets (3-phase or single-phase). Faster charging for vehicles that support higher onboard AC charging rates.

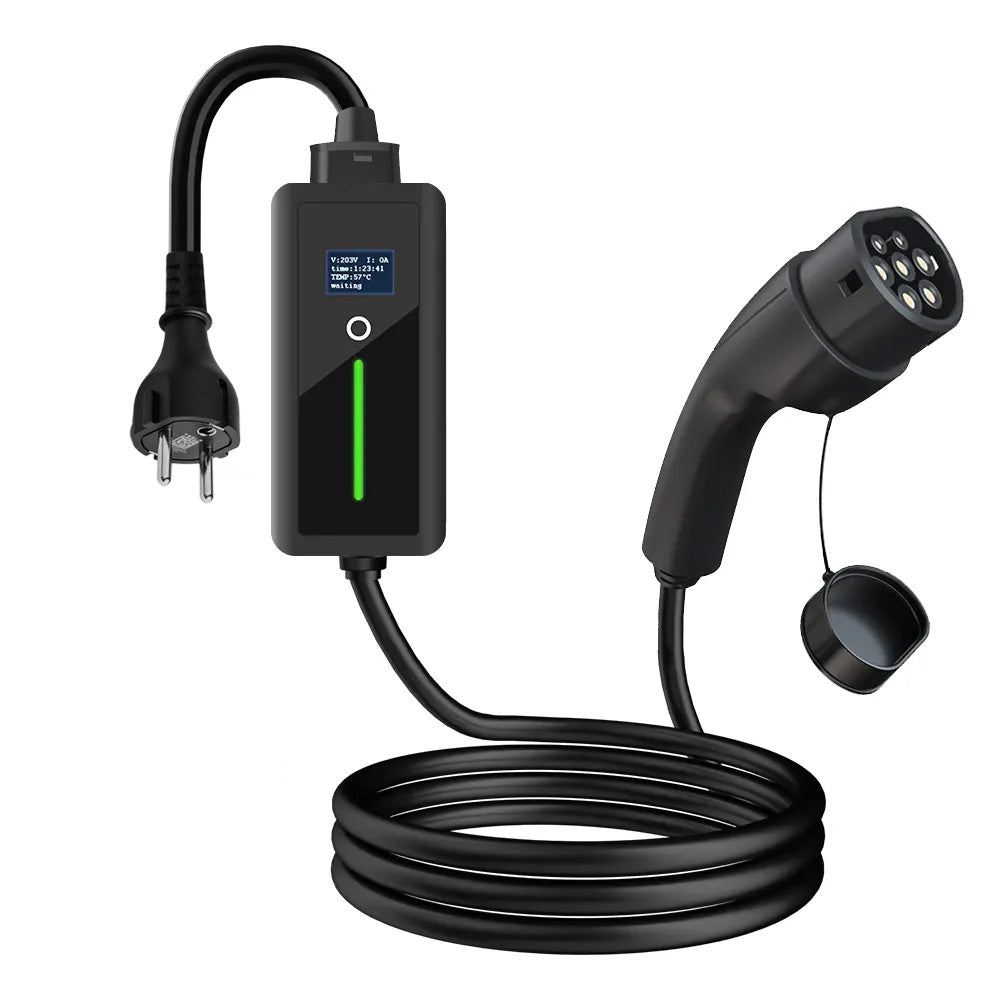

- Schuko plug — 16A / 3.5KW: For use with standard European Schuko household outlets. Ideal for overnight home charging.
Specifications
| Item | Type 2 AC Portable EV Charger |
| Power Plug | CEE / Schuko |
| Charging Standard | IEC 62196 (Type 2) |
| Input Voltage | AC 240V |
| Input Frequency | 50Hz / 60Hz |
| Output Current | 8A / 10A / 13A / 16A / 32A (adjustable) |
| Max Output Power | 3.5KW (16A) / 7.5KW (32A) |
| Standby Power | 3W |
| Cable Length | 5M (16.4 ft) |
| Charging Gun Size | 230 × 98 × 58 mm |
| Control Box Size | 220 × 80 × 70 mm (H × W × D) |
| Protection Class | IP67 (Charging Gun & Control Box) |
| Cooling Method | Natural Cooling |
| Working Temperature | -30°C to +50°C |
| Working Humidity | 5% – 95% (non-condensing) |
| Working Altitude | <2,000M |
| Flammability Rating | UL94 V-0 |
| Interface | 1.7-inch Display Screen + LED Indicator |
| Installation | Floor-mounted / Wall-mounted (screws included) |
| Certifications | CCC / CE / RoHS |
Why Tesstudio
- EV-Specific Engineering: Every product is custom-designed and rigorously tested — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ EV Owners: Join the Tesstudio community — the upgrade brand recommended by EV owners worldwide.
Frequently Asked Questions
Which plug type should I choose — CEE or Schuko?
Choose CEE (32A/7.5KW) if you have an industrial red CEE socket installed at home or at your workplace — this delivers faster charging. Choose Schuko (16A/3.5KW) if you’re using a standard European household outlet. When in doubt, consult a qualified electrician about your home circuit capacity.
Which EVs are compatible?
Any EV with a Type 2 / IEC 62196 charging port is compatible. This includes Tesla Model 3, Model Y, Model S, Model X (European spec), and most European-market EVs. Charging speed is also limited by your vehicle’s onboard AC charger capacity.
How do I adjust the charging current?
Use the button on the control box to select your desired current level (8A, 10A, 13A, 16A, or 32A) before connecting the charging gun to your vehicle. The 1.7-inch display shows the selected setting and charging status in real time.
Is it safe to use outdoors?
Yes — both the charging gun and control box carry an IP67 rating, meaning they are fully dust-tight and protected against temporary submersion in water. Suitable for outdoor use in rain.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
