Type 2 Extension Cable - Compatible with All IEC 62196 EV Chargers
✅Installing this roof rack does not require drilling or cutting and will not modify your factory side rails.
Need Help? Contact Tesstudio
Our support team is available via WhatsApp and text message at:
+1 (626) 412-7352
+86 191 2063 1131
+86 190 2201 1181
We’re here to help.
— Tesstudio Support Team
Tesstudio Offline Technical Support Store(Installation+Modified)
Located in : 14451 Franklin Ave, Tustin, CA 92780, USA
Technical Support: +1(657)543-9876 or
+1 (657)565-1007
(note:This phone number provides technical support only.For other services, please contact:
Email: support@tesstudio.com
WhatsApp:+17143179647)
Technical Support Time : Mon-Fri 8:30am-5:30pm
We offer a one-year warranty ( We provide one year of after-sales service for product issues not caused by human damage )
We ship all orders via trusted carriers like FedEx, USPS, UPS, or SF Express.
Enjoy free shipping on all orders! In-stock items are processed and dispatched within 1–2 business days, with domestic US delivery typically taking 3–7 business days.
For pre-orders or temporarily out-of-stock items, shipping will follow the timeframe provided on the product page.
Choose options






Product Details

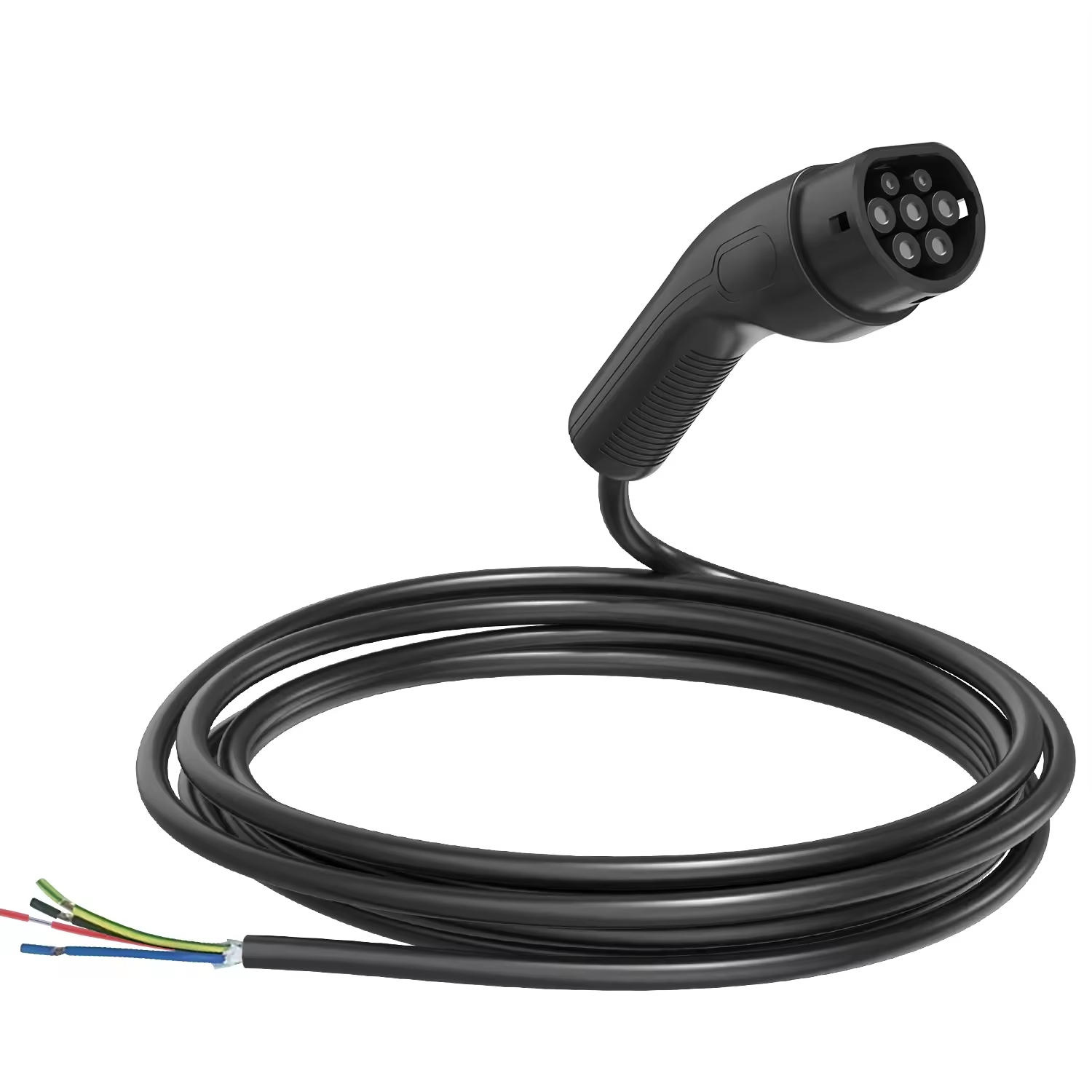

Extend your reach at any Type 2 / IEC 62196 charging station. This premium Type 2 extension cable features silver-plated copper alloy pins, UL94 V-0 flame-retardant housing, and IP55 weatherproofing — engineered for safe, reliable AC charging at home or in public. Available in 16A and 32A variants.
Key Features
- Universal Type 2 Compatibility: Works with all IEC 62196 Type 2 charging stations and EVs — including Tesla Model 3, Model Y, Model S, Model X, and most European-market electric vehicles.
- Dual Current Options: Available in 16A and 32A to match your home circuit or public charging station capacity.

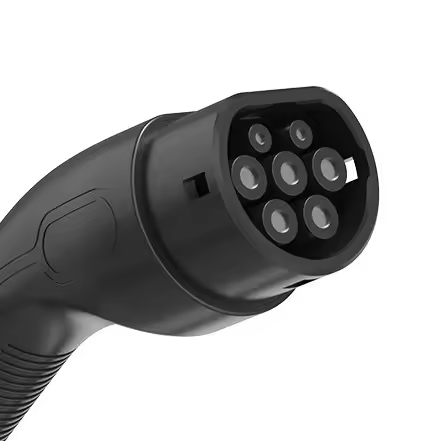

- Premium Conductivity: Copper alloy pins with silver plating for superior conductivity and long-term durability.
- Flame-Retardant Shell: Thermoplastic housing rated UL94 V-0 for safe operation under high-temperature conditions.
- All-Weather Ready: IP55 waterproof rating; operates in temperatures from -30°C to +50°C.

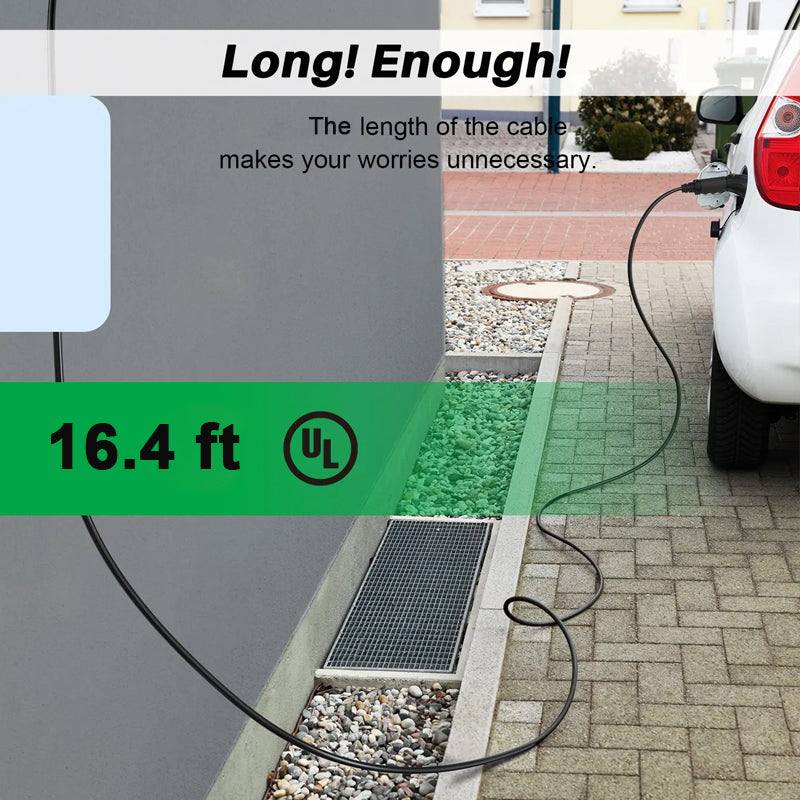

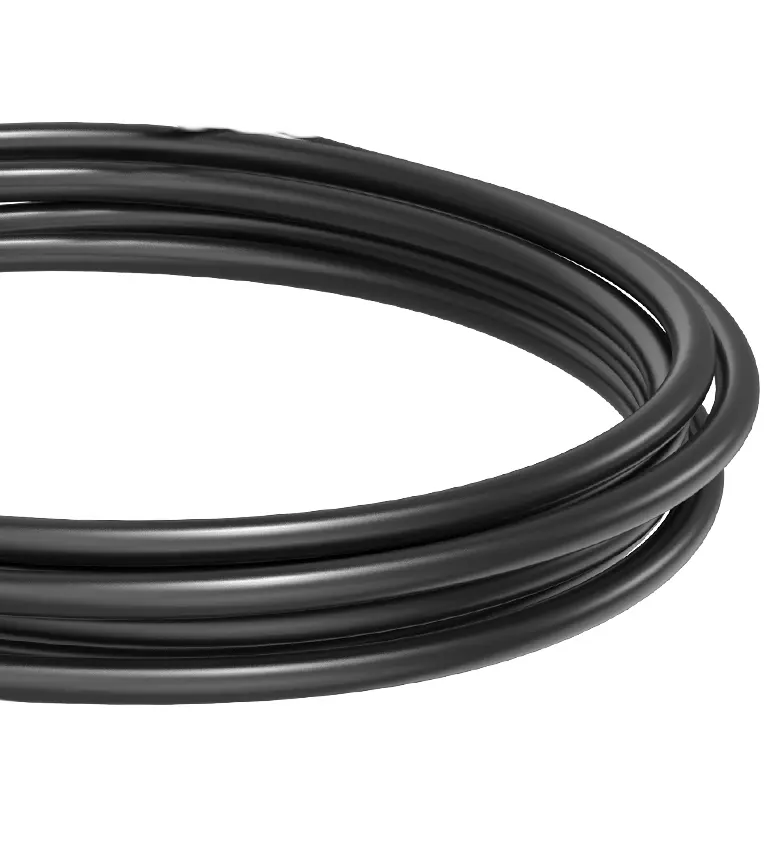

- Heavy-Duty Cable: 5M (16.4 ft) cable with anti-flame, pressure-resistant, abrasion-resistant, and oil-resistant protection.
- Built to Last: Withstands impact insertion forces >300N and over 10,000 plug-in/pull-out cycles.
- Safety Certified: CE and RoHS certified for guaranteed safety and quality standards.
Specifications
| Item | Type 2 Extension Cable (IEC 62196) |
| Rated Operating Current | 16A / 32A |
| Operating Voltage | AC 240V |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -30°C to +50°C |
| Impact Insertion Force | >300N |
| Mechanical Life | >10,000 cycles |
| Waterproof Rating | IP55 |
| Pin Material | Copper Alloy, Silver Plated |
| Shell Material | Thermoplastic, UL94 V-0 Flame Retardant |
| Cable Length | 5M (16.4 ft) |
| Cable Protection | Anti-flame, pressure-resistant, abrasion-resistant, oil-resistant |
| Certifications | CE / RoHS |
Why Tesstudio
- EV-Specific Engineering: Every product is custom-designed and rigorously tested — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ EV Owners: Join the Tesstudio community — the upgrade brand recommended by EV owners worldwide.
Frequently Asked Questions
What is this cable used for?

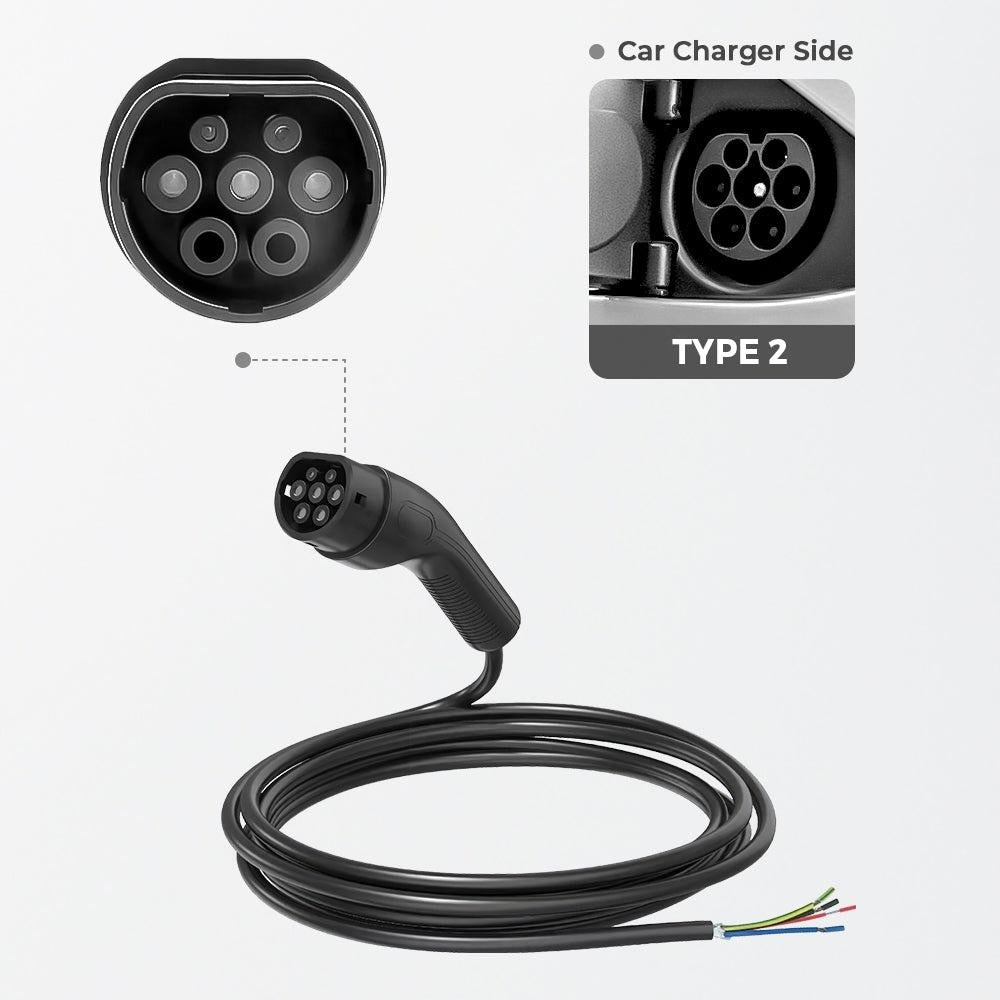

This is a Type 2 to Type 2 extension cable. It extends the reach between your EV’s Type 2 charging port and a Type 2 / IEC 62196 charging station — useful when the station cable is too short to reach your vehicle’s charge port.
Which EVs and chargers are compatible?
Compatible with all EVs and charging stations using the Type 2 / IEC 62196 standard. This includes Tesla Model 3, Model Y, Model S, Model X (European spec), and most European-market EVs. Works with home wallboxes and public AC charging stations.
Should I choose 16A or 32A?
Match the amperage to your charging station and home circuit rating. A standard home wallbox supports 16A; dedicated EV circuits may support 32A for faster charging. When in doubt, consult a qualified electrician.
Is it safe to use outdoors?

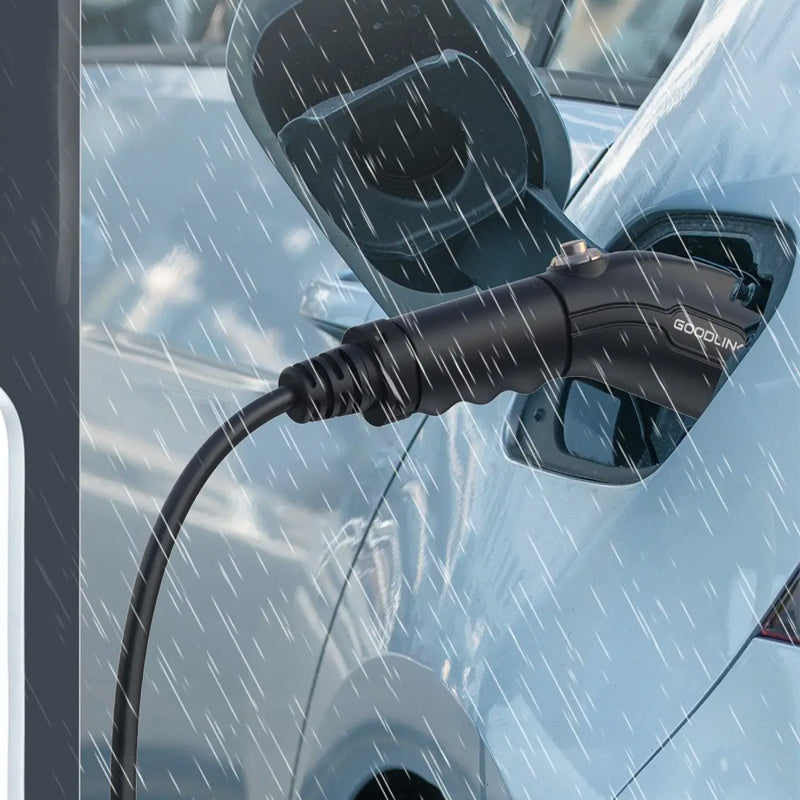

Yes — the IP55 rating protects against dust and water jets from any direction, making it suitable for outdoor use in rain. Store indoors when not in use for best longevity.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
Q&A
We provide assistance through email, live chat, and detailed installation guides. Additionally, we offer step-by-step tutorial videos featuring influencers to help you with the process.
We offer a one-year warranty (two years for some products).
Yes, the product can be removed after installation without affecting the original wiring harness of the vehicle.
We offer free returns and exchanges if there are any quality issues with the product upon receipt by the customer.
