Type 2 to Type 1 EV Charging Adapter
✅Installing this roof rack does not require drilling or cutting and will not modify your factory side rails.
Need Help? Contact Tesstudio
Our support team is available via WhatsApp and text message at:
+1 (626) 412-7352
+86 191 2063 1131
+86 190 2201 1181
We’re here to help.
— Tesstudio Support Team
Tesstudio Offline Technical Support Store(Installation+Modified)
Located in : 14451 Franklin Ave, Tustin, CA 92780, USA
Technical Support: +1(657)543-9876 or
+1 (657)565-1007
(note:This phone number provides technical support only.For other services, please contact:
Email: support@tesstudio.com
WhatsApp:+17143179647)
Technical Support Time : Mon-Fri 8:30am-5:30pm
We offer a one-year warranty ( We provide one year of after-sales service for product issues not caused by human damage )
We ship all orders via trusted carriers like FedEx, USPS, UPS, or SF Express.
Enjoy free shipping on all orders! In-stock items are processed and dispatched within 1–2 business days, with domestic US delivery typically taking 3–7 business days.
For pre-orders or temporarily out-of-stock items, shipping will follow the timeframe provided on the product page.
Choose options








Product Details

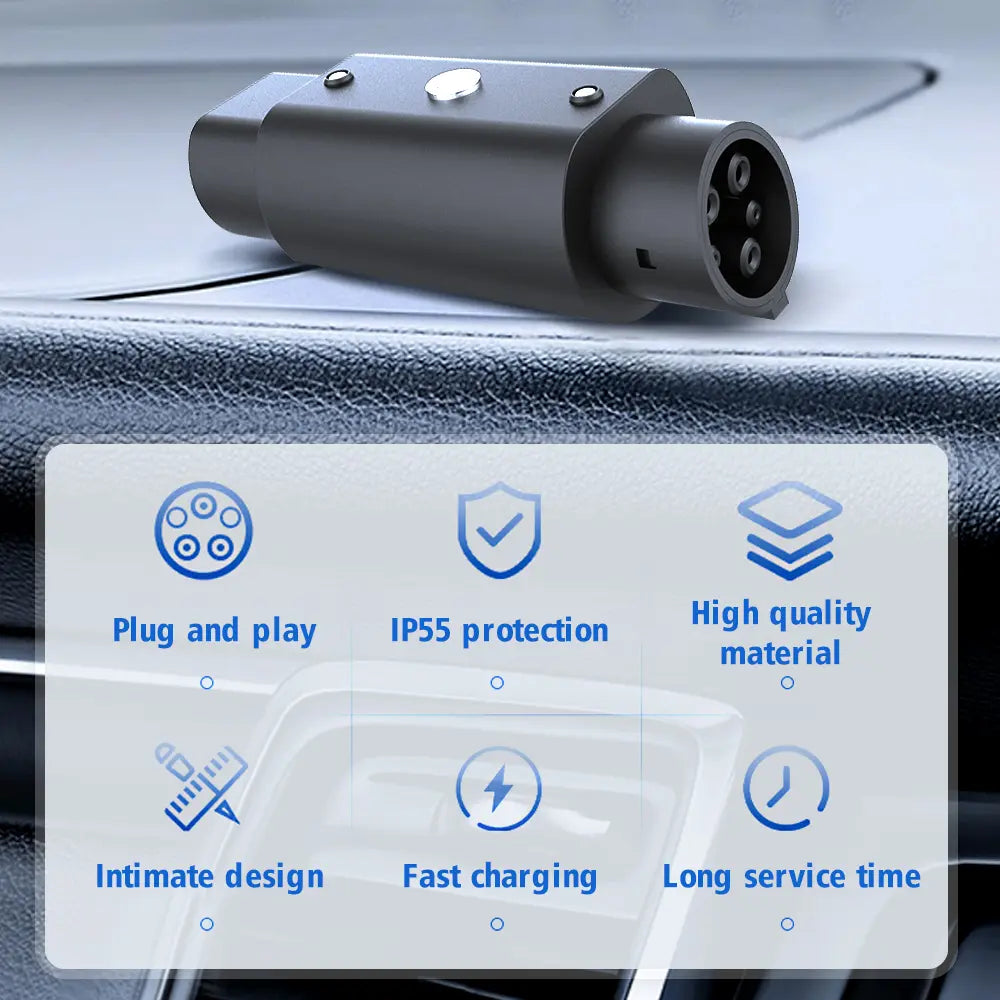

Power up your EV with confidence. This premium Type 2 to Type 1 charging adapter is CE/FCC/RoHS-certified, built with UL94 V-0 flame-retardant materials, and engineered for safe, reliable charging at home or on the road.
Key Features

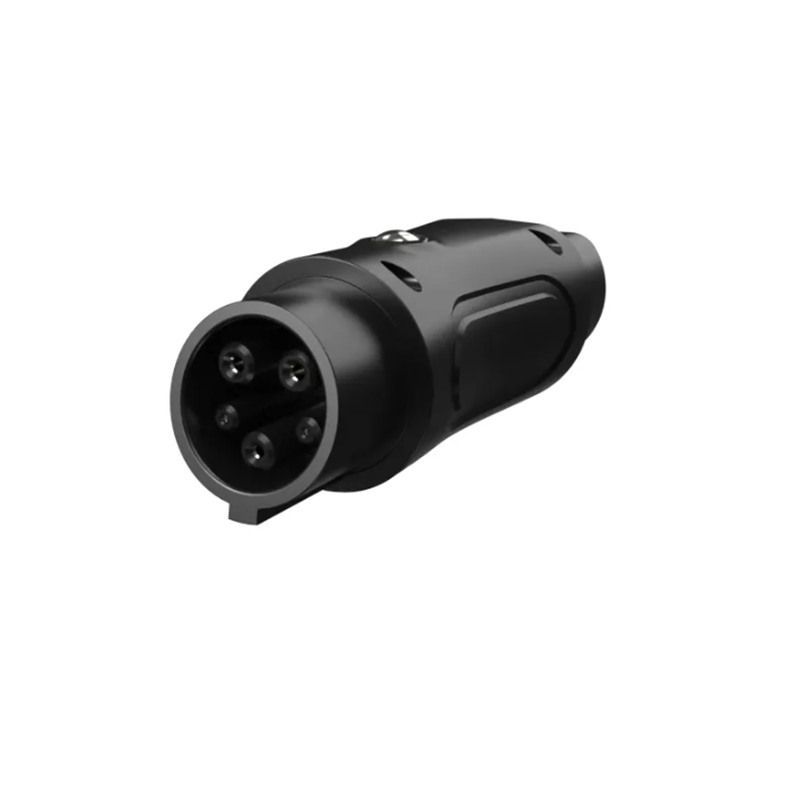

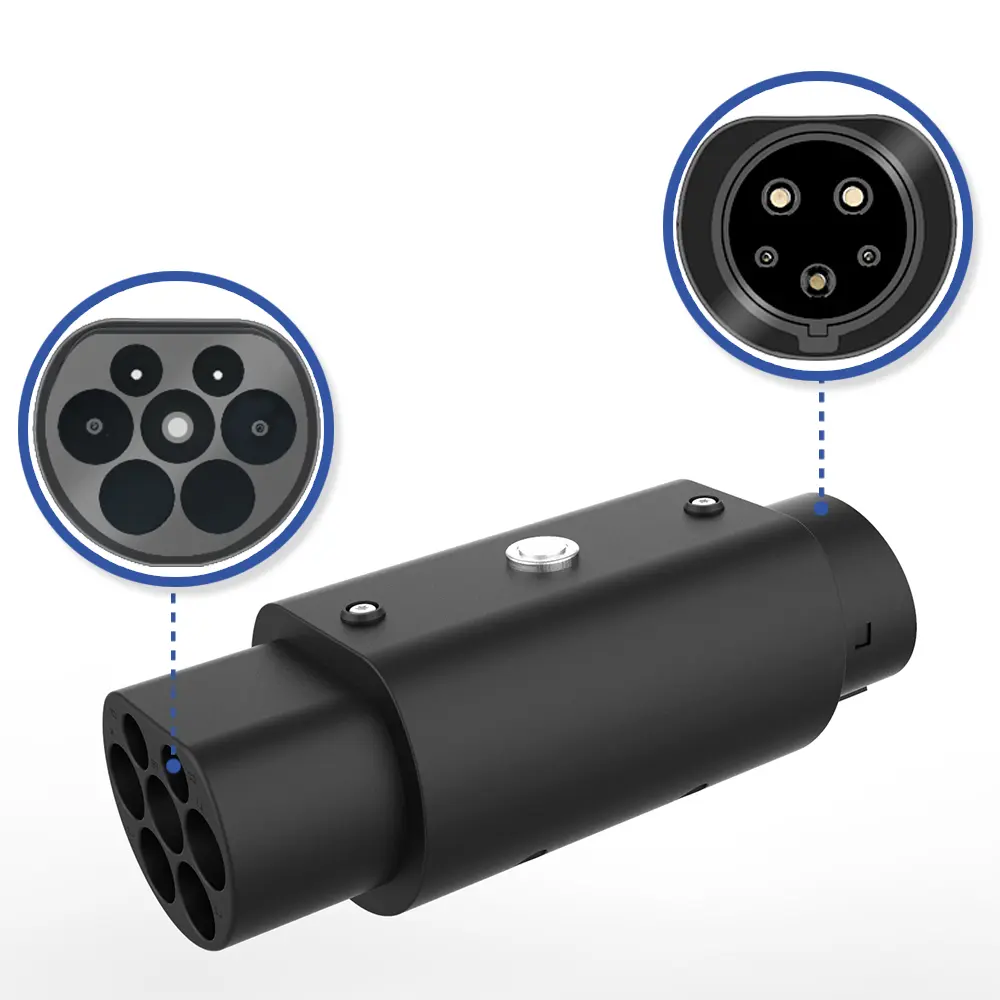

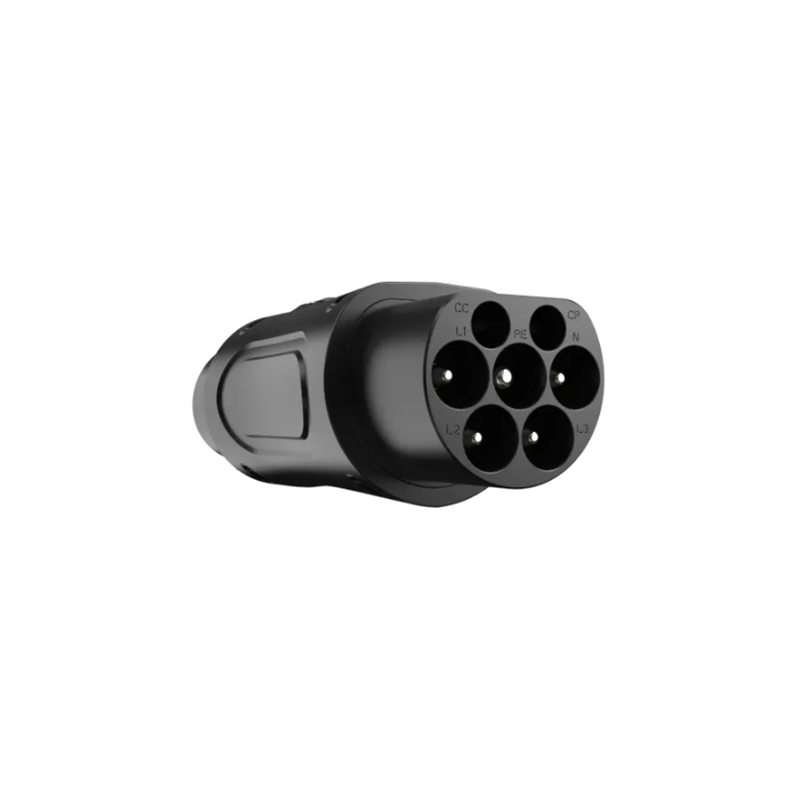

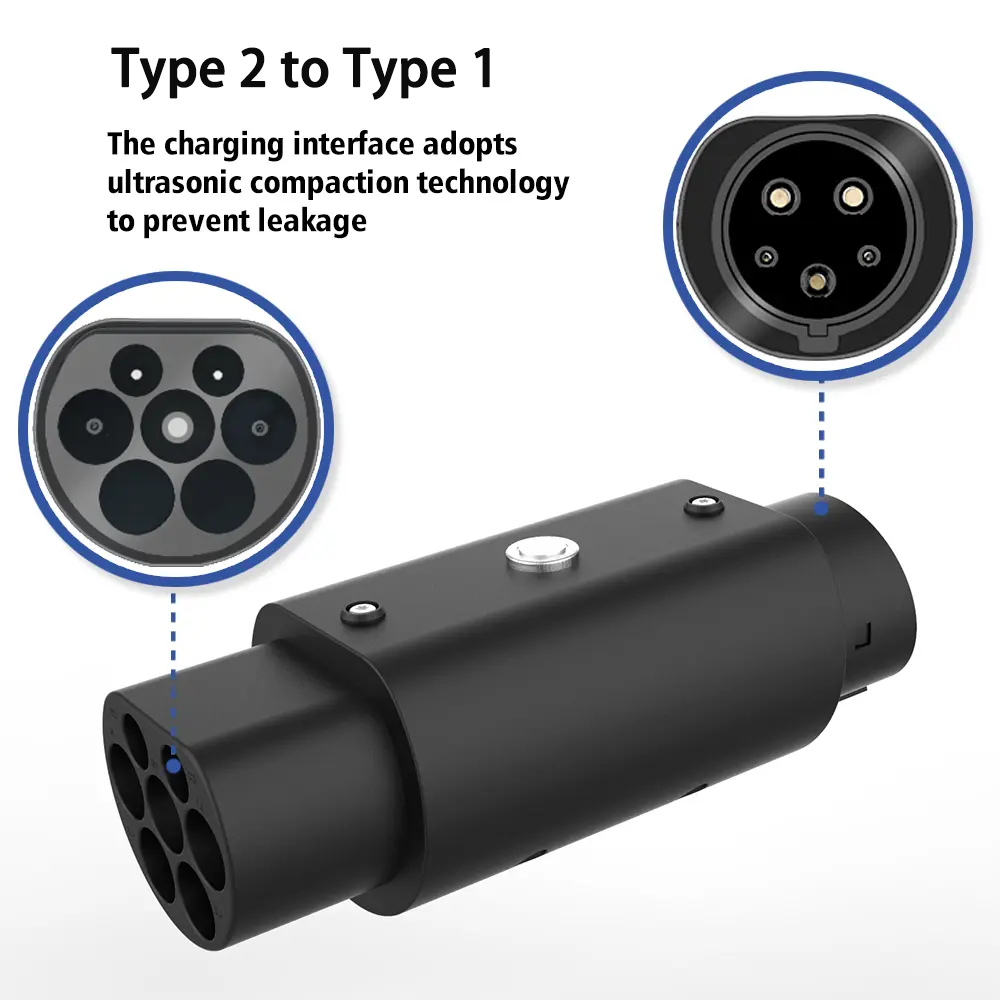

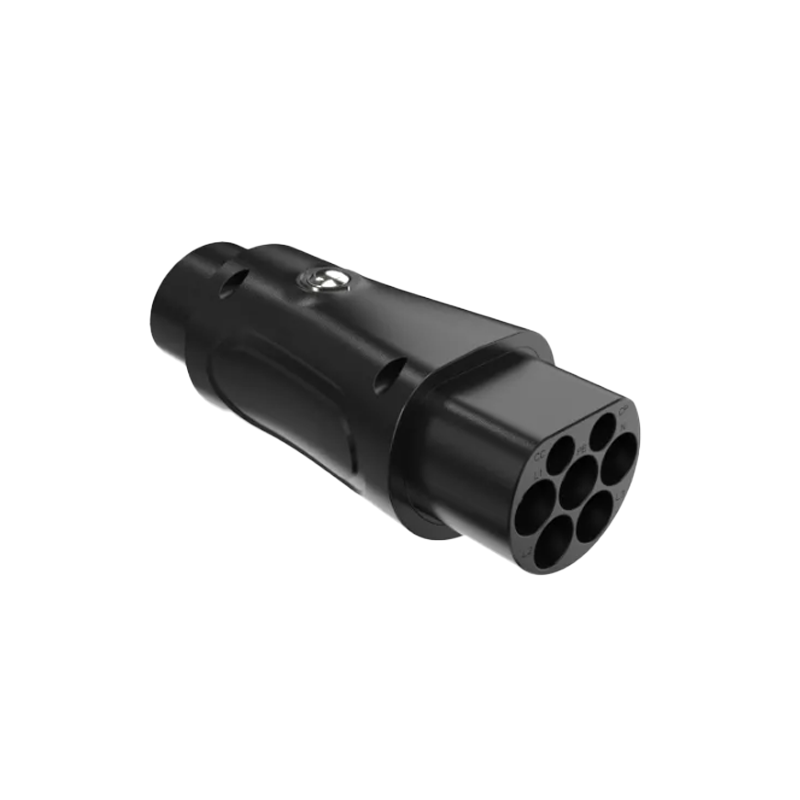

- Connector Type: Type 2 (input) → Type 1 / J1772 (output)
- High Current Capacity: Rated at 32A — supports rapid AC charging for a wide range of EVs.
- Premium Materials: UL94 V-0 flame-retardant housing ensures safety and stability under high-temperature conditions.
- Universal EV Compatibility: Seamlessly converts Type 2 European charging stations to Type 1 / J1772 sockets, compatible with most EVs using the J1772 standard.

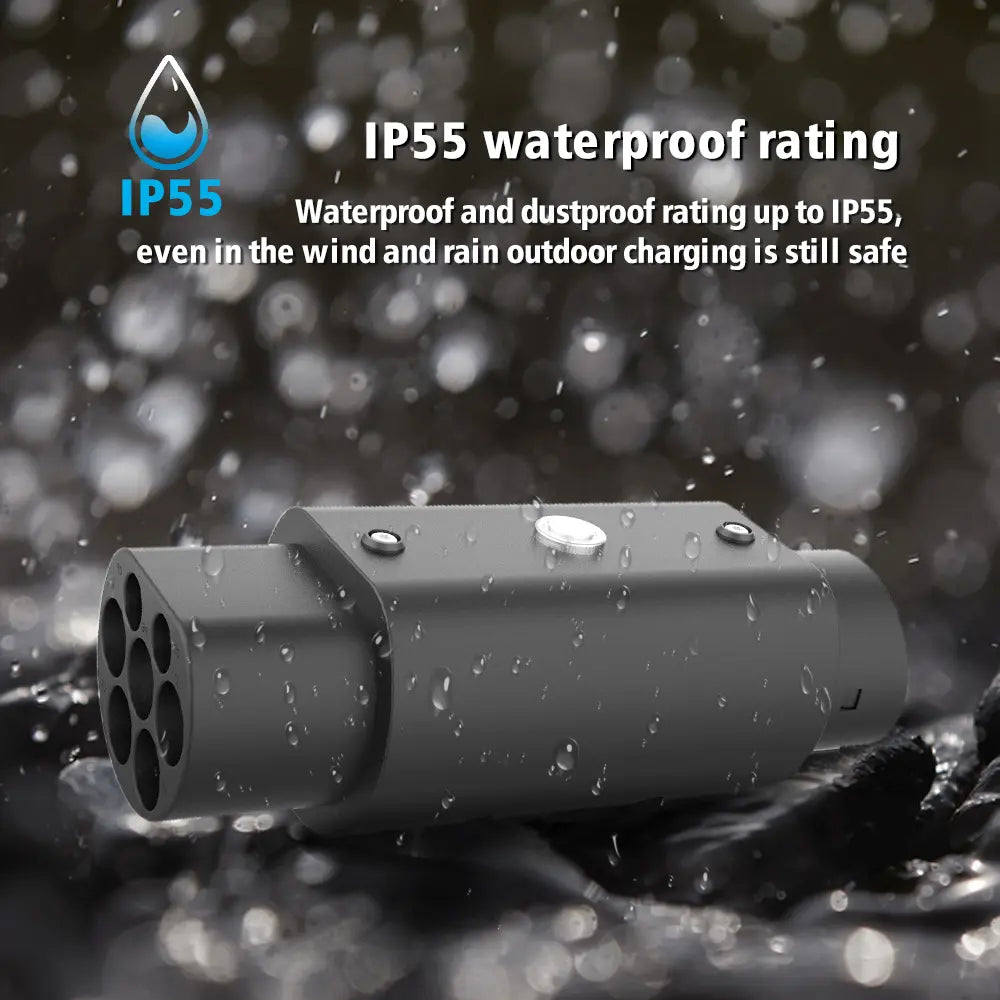

- All-Weather Ready: IP55 waterproof rating; operates in temperatures from -30°C to +50°C.
- Built to Last: Mechanical life exceeds 10,000 insertion cycles with insertion force between 45N–80N.
⚠️ Important Notes:

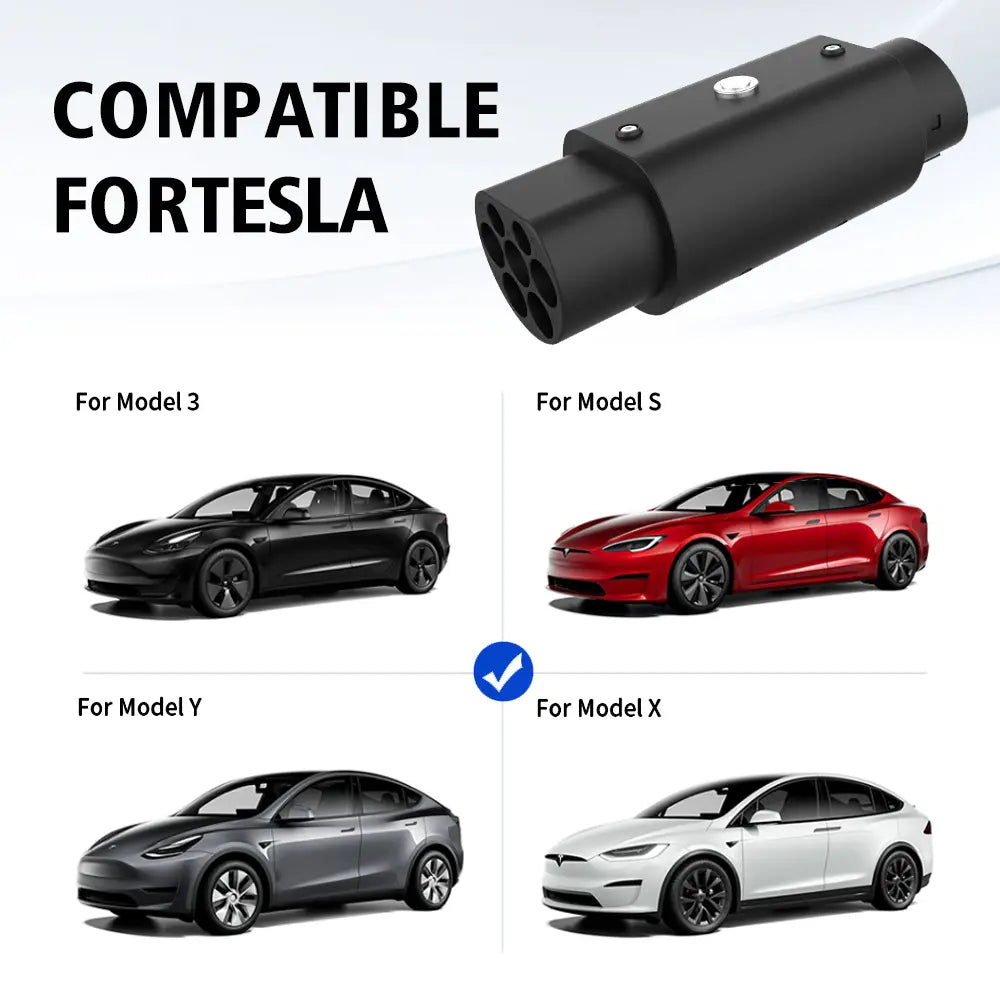

1. Early Tesla home chargers use proprietary internal protocols and can only charge Tesla vehicles. Non-Tesla vehicles cannot use this adapter with Tesla home chargers.
2. Non-Tesla vehicles can use this adapter with standard European Type 2 public charging stations.
Specifications
| Item | Type 2 to Type 1 |
| Rated Operating Current | 32A |
| Operating Voltage | 250V (AC) |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V / 5s |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -30°C to +50°C |
| Insertion Force | 45N – 80N |
| Mechanical Life | >10,000 cycles |
| Waterproof Rating | IP55 |
| Flame Retardant Grade | UL94 V-0 |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- EV-Specific Engineering: Every product is custom-designed and rigorously tested — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ EV Owners: Join the Tesstudio community — the upgrade brand recommended by EV owners worldwide.
Frequently Asked Questions
Is this adapter certified?
Yes — it carries CE, FCC, and RoHS certifications, and is constructed with UL94 V-0 flame-retardant materials for safe operation.
Will it work with my Tesla home charger?
Early Tesla home chargers use proprietary protocols and only support Tesla vehicles. This adapter is designed for use with European Type 2 public charging stations, not Tesla-proprietary home chargers.
Which vehicles are compatible?
Any EV with a Type 1 / J1772 charging port can use this adapter with Type 2 charging stations. This includes many North American and Asian EVs used in European markets.
Is it waterproof?
Yes — rated IP55, it can handle splashing water and light rain. For best longevity, store indoors when not in use.
What's covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
Q&A
We provide assistance through email, live chat, and detailed installation guides. Additionally, we offer step-by-step tutorial videos featuring influencers to help you with the process.
We offer a one-year warranty (two years for some products).
Yes, the product can be removed after installation without affecting the original wiring harness of the vehicle.
We offer free returns and exchanges if there are any quality issues with the product upon receipt by the customer.
