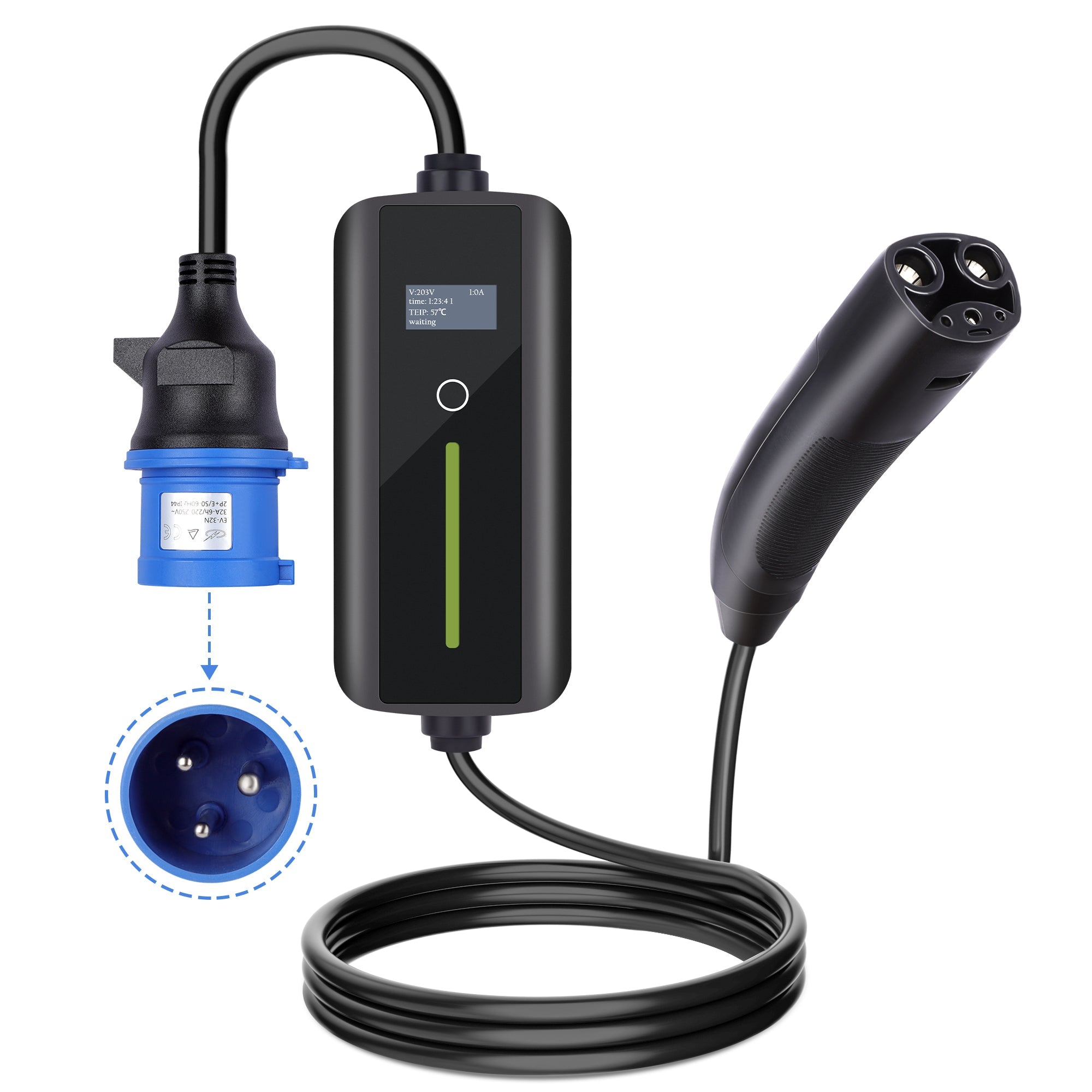

TSL 7KW 32A Car Charger EU Standard Power Supply
✅Installing this roof rack does not require drilling or cutting and will not modify your factory side rails.
Need Help? Contact Tesstudio
Our support team is available via WhatsApp and text message at:
+1 (626) 412-7352
+86 191 2063 1131
+86 190 2201 1181
We’re here to help.
— Tesstudio Support Team
Tesstudio Offline Technical Support Store(Installation+Modified)
Located in : 14451 Franklin Ave, Tustin, CA 92780, USA
Technical Support: +1(657)543-9876 or
+1 (657)565-1007
(note:This phone number provides technical support only.For other services, please contact:
Email: support@tesstudio.com
WhatsApp:+17143179647)
Technical Support Time : Mon-Fri 8:30am-5:30pm
We offer a one-year warranty ( We provide one year of after-sales service for product issues not caused by human damage )
We ship all orders via trusted carriers like FedEx, USPS, UPS, or SF Express.
Enjoy free shipping on all orders! In-stock items are processed and dispatched within 1–2 business days, with domestic US delivery typically taking 3–7 business days.
For pre-orders or temporarily out-of-stock items, shipping will follow the timeframe provided on the product page.
Choose options


Product Details
Smart, portable, and built for European power grids. The TSL 7KW 32A portable EV charger supports 120–240V input, adjustable output from 8A to 32A (up to 7.68KW), and a built-in scheduled charging timer (0–12 hours). With military-grade environmental resilience, IP54/IP66 dual protection, and UL94-V0 flame-retardant housing, it’s engineered for reliable home and on-the-go charging.
⚠️ Safety Warning:
1. Read all instructions before use. Improper use may cause fire, electric shock, or serious injury.
2. Do not disassemble or tamper with this charger. Repairs must only be performed by qualified professionals.
3. Do not use in extreme weather conditions (hurricanes, heavy rainstorms, etc.).
Key Features
- Wide Input Voltage: Compatible with 120–240V power supplies — suitable for home outlets and public charging infrastructure across Europe and North America.
- Adjustable Charging Current: Four output levels — 8A, 16A, 24A, and 32A — selectable via the control button to match your vehicle and circuit capacity.
- Scheduled Charging Timer: Set a delayed start from 0 to 12 hours (in 1-hour increments) to take advantage of off-peak electricity rates.
- Dual IP Protection: IP54 when in use (protected against dust and water splashing); IP66 when not in use (protected against powerful water jets).
- Military-Grade Resilience: Tested to MIL-STD-202 standards for vibration (Meth.204) and corrosion resistance (Meth.101).
- Extreme Temperature Range: Connector rated -65°C to +125°C; PE cable rated -40°C to +85°C; operating temperature -10°C to +80°C.
- Premium Materials: Thermoplastic housing with UL94-V0 flame-retardant rating; copper alloy silver-plated contact points; rubber seal ring for weatherproofing.
- High Durability: Rated for over 10,000 insertion cycles (unloaded).
How to Adjust Charging Current
- Press and hold the button for 2 seconds to enter adjustment mode. The display shows [CUR] (current) and [APPT] (appointment) options.
- Short-press the button to navigate to [CUR], then press and hold for 2 seconds to enter current setting mode.
- Short-press to cycle through the four levels: 8A → 16A → 24A → 32A.
- Press and hold for 2 seconds to confirm your selection and exit. Factory default: 32A.
How to Set Scheduled Charging
- Press and hold the button for 2 seconds to enter adjustment mode.
- Short-press to navigate to [APPT], then press and hold for 2 seconds to enter the timer setting mode.
- Short-press to increase the delay time in 1-hour increments. Range: 0 to 12 hours (13 levels).
- Press and hold for 2 seconds to confirm. The countdown begins and charging starts automatically at the set time. Factory default: immediate charging (0 hours).
How to Charge Your EV
- Insert the power plug into the wall outlet.
- Bring the TSL charging gun to your vehicle’s charging port.
- Press the on/off button on the charging gun to open the TSL charging port cover.
- Insert the TSL charging gun into the vehicle’s charging port.
- Wait for the charging indicator light to turn green — charging has begun.
Specifications
| Electrical Properties | |
| Input Voltage | 120–240V |
| Rated Current | 32A (adjustable: 8A / 16A / 24A / 32A) |
| Max Output Power | 7.68KW (32A × 240V) |
| Insulation Resistance | >1000MΩ |
| Durability | >10,000 cycles (unloaded) |
| Environmental Performance | |
| Connector Temperature Range | -65°C to +125°C |
| PE Cable Temperature Range | -40°C to +85°C |
| Operating Temperature | -10°C to +80°C |
| Relative Humidity | 40% – 98% |
| Vibration Standard | MIL-STD-202 Meth.204 |
| Corrosion Resistance | MIL-STD-202 Meth.101 |
| Protection Level | IP54 (working) / IP66 (not in use) |
| Materials | |
| Housing / Insulator | Thermoplastic |
| Seal Ring | Rubber |
| Flame Retardant Rating | UL94-V0 |
| Contact Points | Copper Alloy, Silver Plated |
| Packaging | |
| Package | Storage case + PE + Carton box |
| Shipping | Express / Logistics |
Why Tesstudio
- EV-Specific Engineering: Every product is custom-designed and rigorously tested — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ EV Owners: Join the Tesstudio community — the upgrade brand recommended by EV owners worldwide.
Frequently Asked Questions
Is this charger waterproof?
The charging gun is rated IP54 during use (protected against dust and water splashing from any direction). The control box is rated IP66 when not in use (protected against powerful water jets). Avoid using the charger in extreme weather such as heavy rainstorms, and keep the control box sheltered from direct rain during charging.
How fast will my EV charge?
Maximum charging power is up to 7.68KW (32A × 240V). Actual charging speed depends on your vehicle’s onboard AC charger capacity, battery state, and the power supply wattage. Most EVs will charge at 3.5–7KW on a standard home circuit.
Can I use the scheduled charging feature to save on electricity costs?
Yes — the built-in timer lets you delay charging by up to 12 hours. Set it to start during off-peak hours (e.g., overnight) to take advantage of lower electricity tariffs.
Which EVs are compatible?
This charger uses a TSL (Tesla-style) charging connector. It is designed for Tesla vehicles (Model 3, Model Y, Model S, Model X, Cybertruck) using the TSL / CCS2 charging standard in European markets. Please verify connector compatibility with your specific vehicle before purchase.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
