Product Details

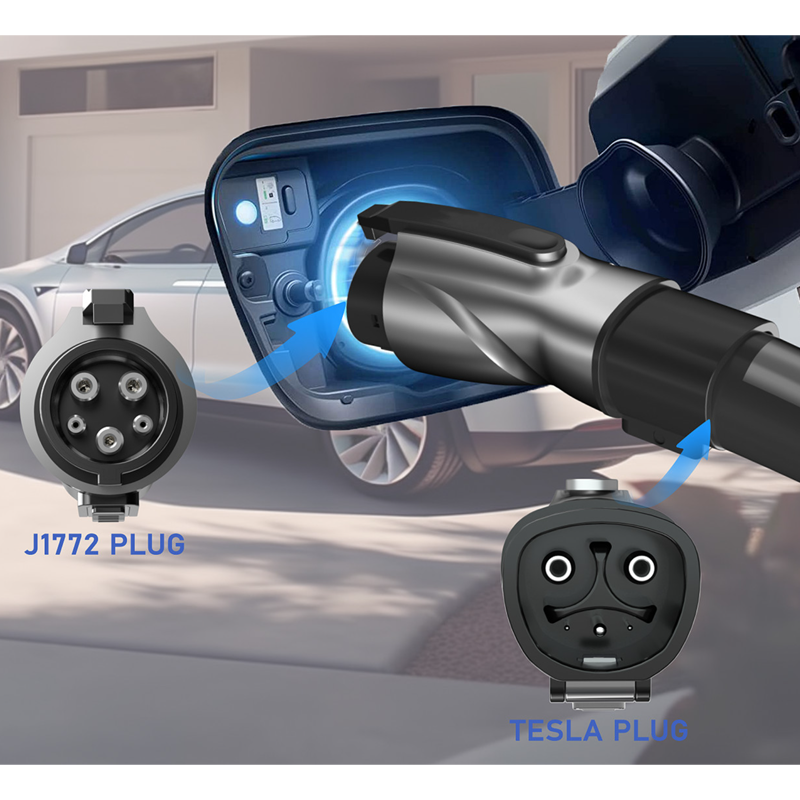

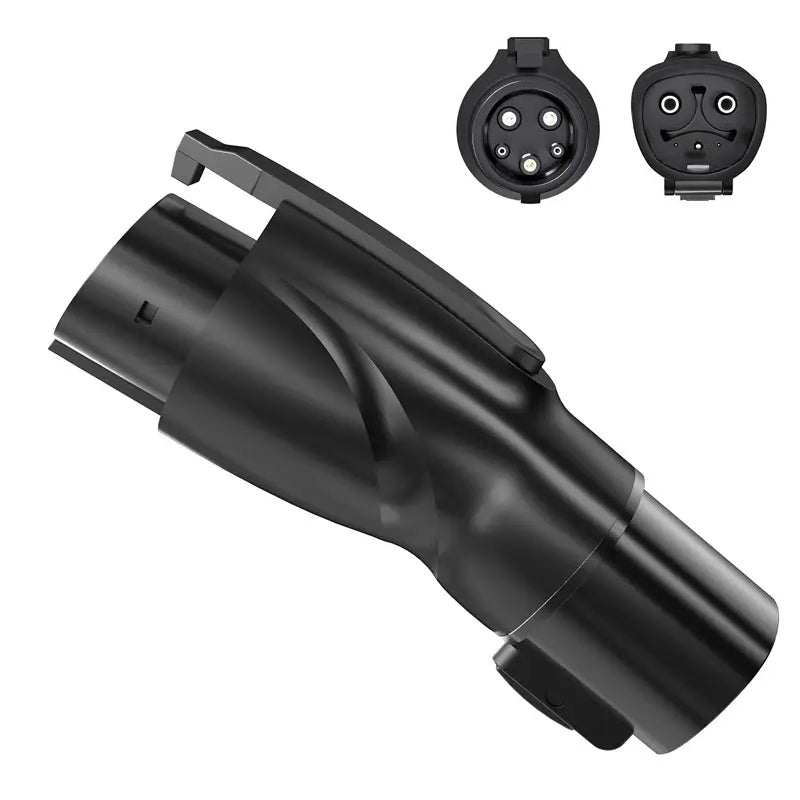

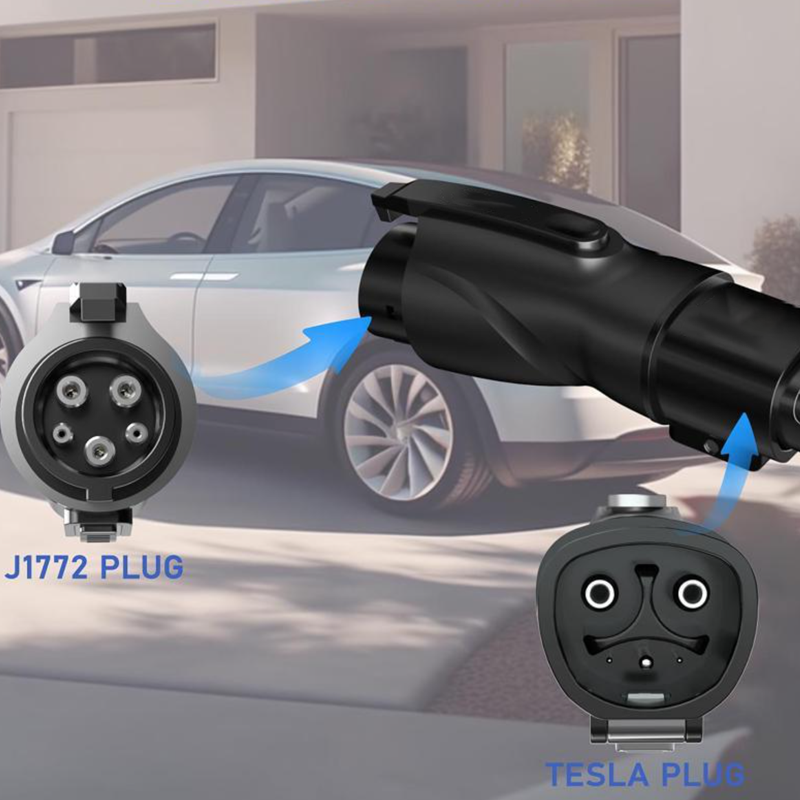

Use any J1772 charging station with your Tesla — no compromises. This NACS to J1772 adapter lets Tesla Model 3, Model Y, Model S, Model X, and Cybertruck owners plug into the vast network of J1772 Level 2 chargers across North America. Rated at 48A / 250V AC, built from PA66 + glass fiber, and IP55 weatherproof. Available in Black and Grey.
Key Features

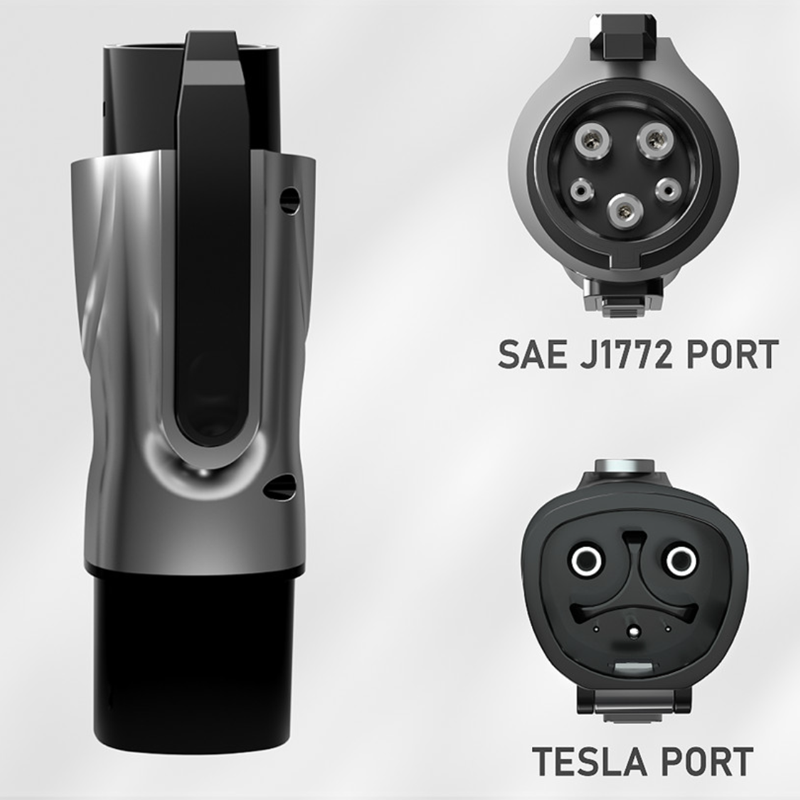

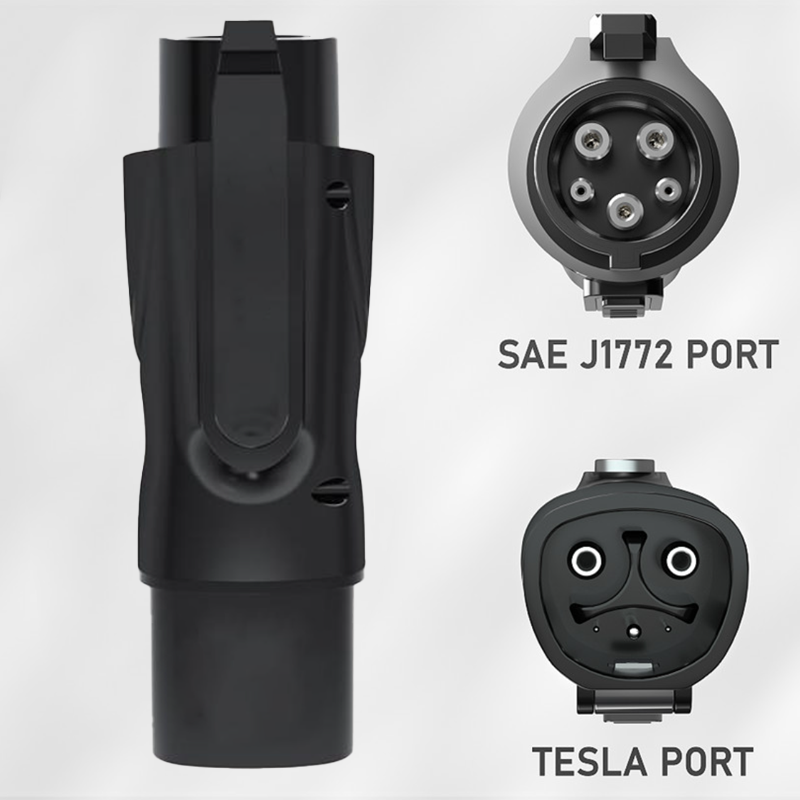

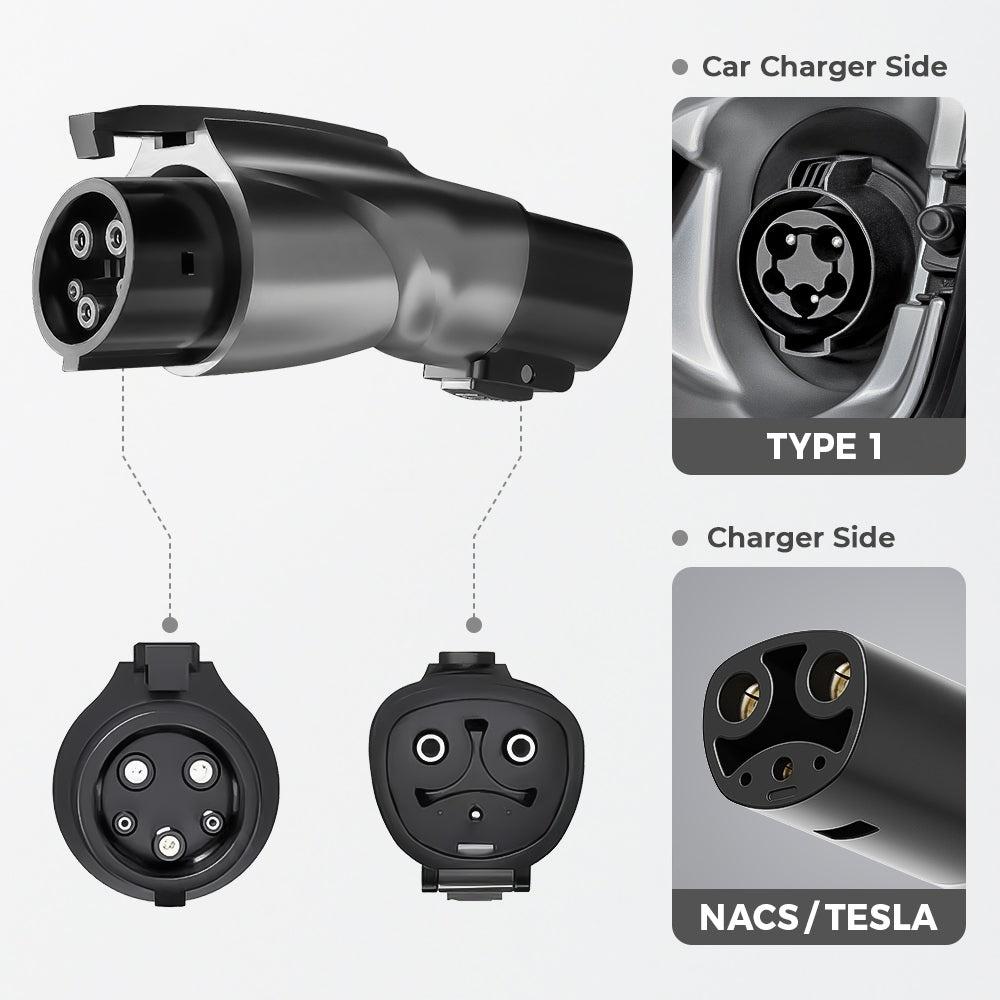

- Connector Type: NACS / Tesla (vehicle side, female) → SAE J1772 / Type 1 (charger side, male)
- High-Power Charging: Rated at 48A / 110–250V AC — supports up to the maximum output of most J1772 Level 2 chargers.

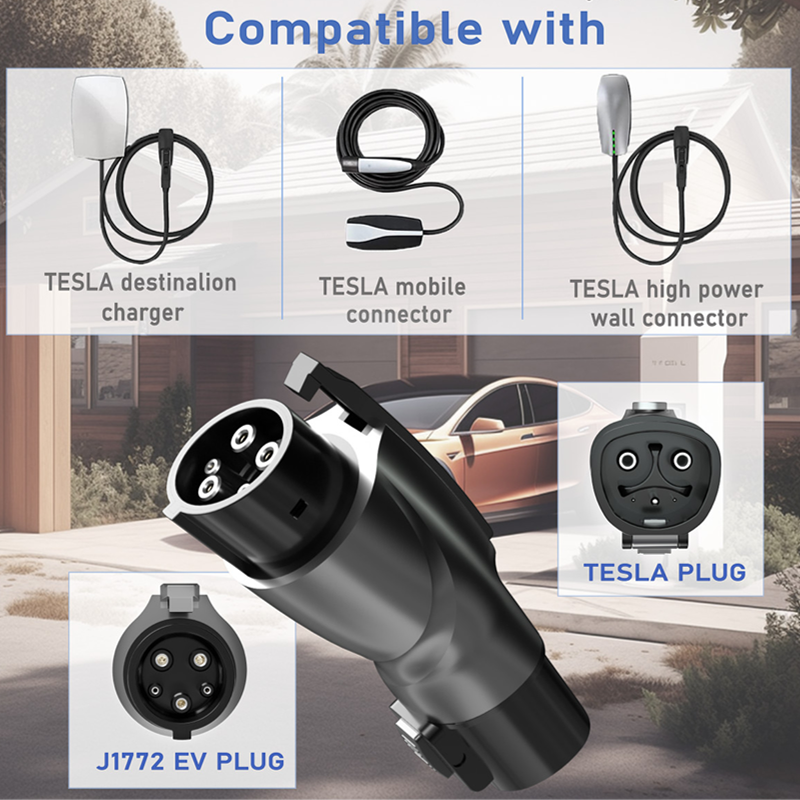

- Wide Compatibility: Works with Tesla High Powered Wall Connectors, Destination Chargers, and Mobile Connectors, as well as third-party J1772 Level 2 stations. Not compatible with DC fast chargers (CCS / CHAdeMO / Supercharger).
- Durable Construction: PA66 + glass fiber housing with UL94 V-0 flame-retardant rating for long-term reliability.
- All-Weather Ready: IP55 waterproof rating; operates in temperatures from -40°C to +85°C.
- Built to Last: Mechanical life exceeds 10,000 insertion cycles; insertion force 45N–80N.
- Safety Certified: CE, FCC, and RoHS certified.

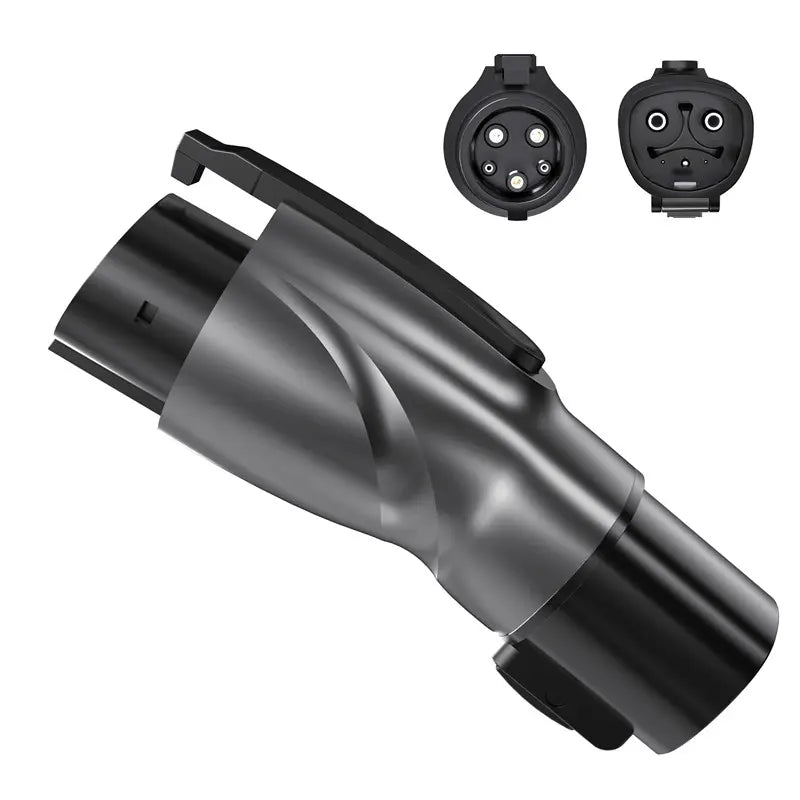

- Available in: Black / Grey — choose to match your vehicle or preference.
Specifications
| Item | Tesla (NACS) to J1772 Adapter |
| Rated Operating Current | 48A |
| Operating Voltage | 110–250V (AC) |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V / 5s |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -40°C to +85°C |
| Insertion Force | 45N – 80N |
| Mechanical Life | >10,000 cycles |
| Waterproof Rating | IP55 |
| Housing Material | PA66 + Glass Fiber |
| Flame Retardant Grade | UL94 V-0 |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide.
Frequently Asked Questions
What does this adapter do?
This adapter plugs into your Tesla’s NACS charging port and converts it to accept a J1772 Level 2 charger cable. It expands your charging options to include the large network of J1772-compatible public and home chargers across North America.
Will it work with Tesla Superchargers?
No — this adapter is for AC Level 2 J1772 chargers only. Tesla Superchargers use a different protocol and are not compatible with this adapter. Your Tesla’s built-in NACS port connects directly to Superchargers without any adapter.
Which Tesla models are compatible?
Compatible with all Tesla models equipped with the NACS port: Model 3, Model Y, Model S, Model X, and Cybertruck (all years with NACS). If your Tesla has a CCS1 port (some older North American models), this adapter is not compatible.
Is it safe to use outdoors?
Yes — the IP55 rating protects against dust and water jets from any direction. Suitable for outdoor use in rain. Store indoors when not in use for best longevity.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
