Tesla EV Extension Cord
✅Installing this roof rack does not require drilling or cutting and will not modify your factory side rails.
Need Help? Contact Tesstudio
Our support team is available via WhatsApp and text message at:
+1 (626) 412-7352
+86 191 2063 1131
+86 190 2201 1181
We’re here to help.
— Tesstudio Support Team
Tesstudio Offline Technical Support Store(Installation+Modified)
Located in : 14451 Franklin Ave, Tustin, CA 92780, USA
Technical Support: +1(657)543-9876 or
+1 (657)565-1007
（note：This phone number provides technical support only.For other services, please contact:
Email: support@tesstudio.com
WhatsApp:+17143179647）
Technical Support Time : Mon-Fri 8:30am-5:30pm
We offer a one-year warranty ( We provide one year of after-sales service for product issues not caused by human damage )
We ship all orders via trusted carriers like FedEx, USPS, UPS, or SF Express.
Enjoy free shipping on all orders! In-stock items are processed and dispatched within 1–2 business days, with domestic US delivery typically taking 3–7 business days.
For pre-orders or temporarily out-of-stock items, shipping will follow the timeframe provided on the product page.
Choose options
Product Details

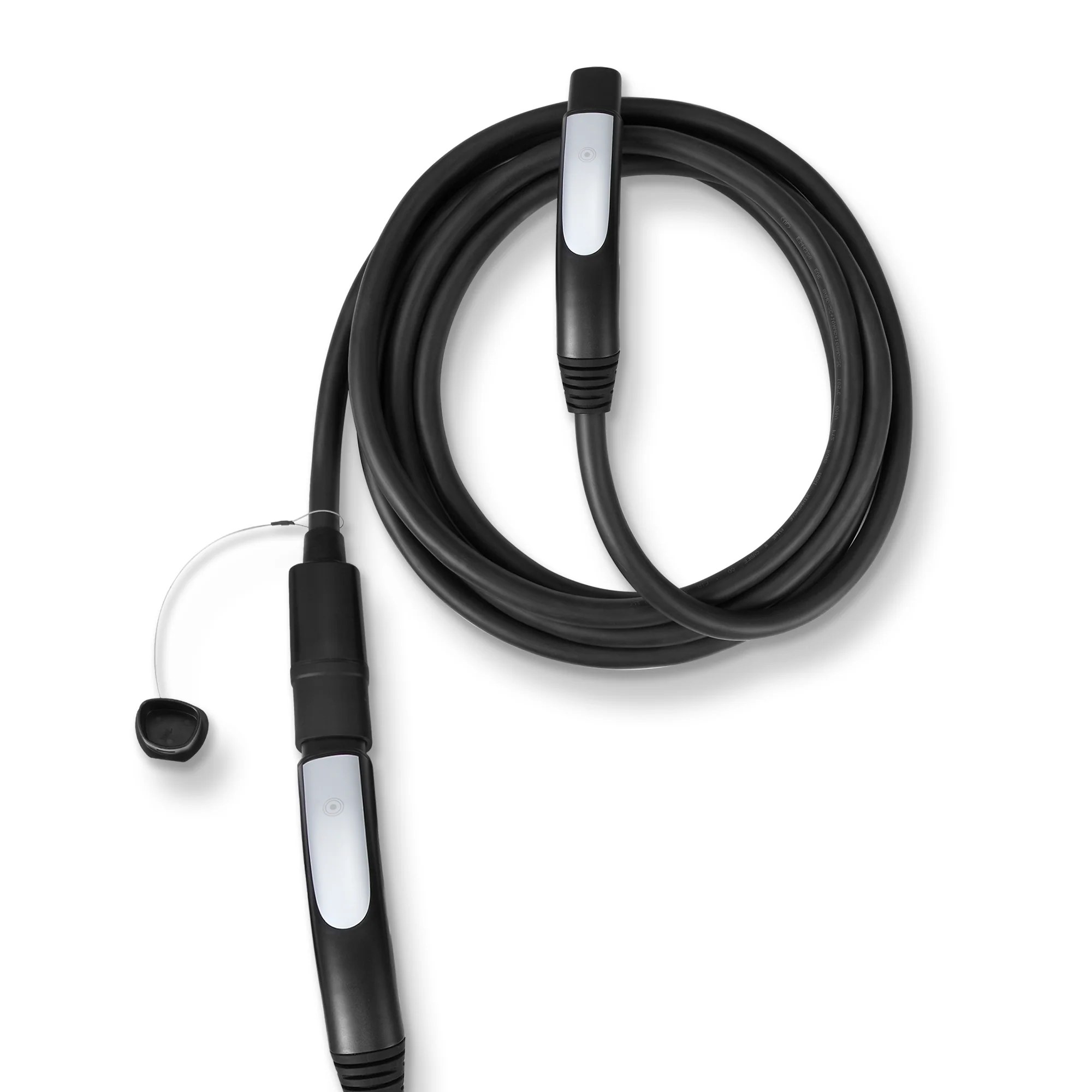

When your Tesla charger cable just doesn’t reach, this NACS extension cord adds an extra 5M (16.4 ft) of reach — no adapters, no compromises. Available in four current ratings (16A, 32A, 40A, 48A) to match your wall connector or Mobile Connector output. Built with silver-plated copper alloy pins, UL94 V-0 flame-retardant housing, and IP55 weatherproofing for safe, reliable outdoor use.

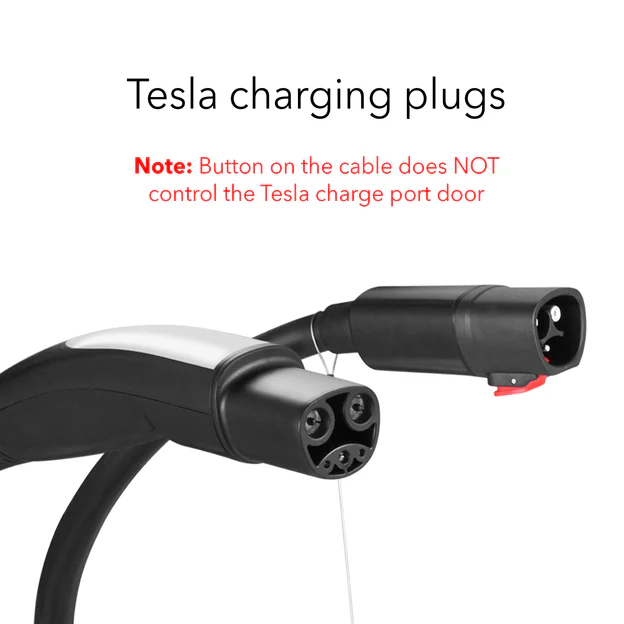

⚠️ Important: The button on this cable does NOT control the charge port door on your Tesla. This cable is not compatible with Tesla Superchargers.
Key Features

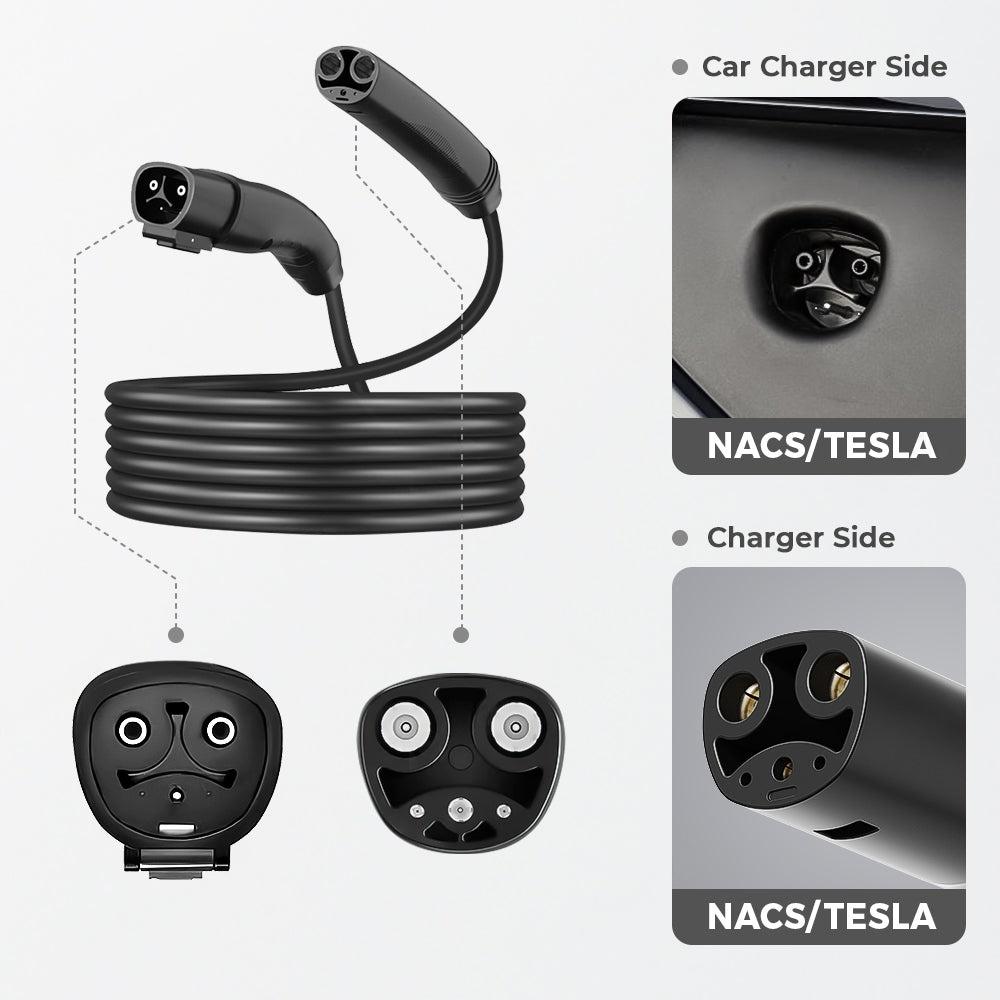

- Connector Type: NACS / Tesla (both ends) — extends your existing Tesla charger cable by 5M.
- Four Current Options: 16A, 32A, 40A, or 48A — select the rating that matches your wall connector or Mobile Connector output for optimal performance.

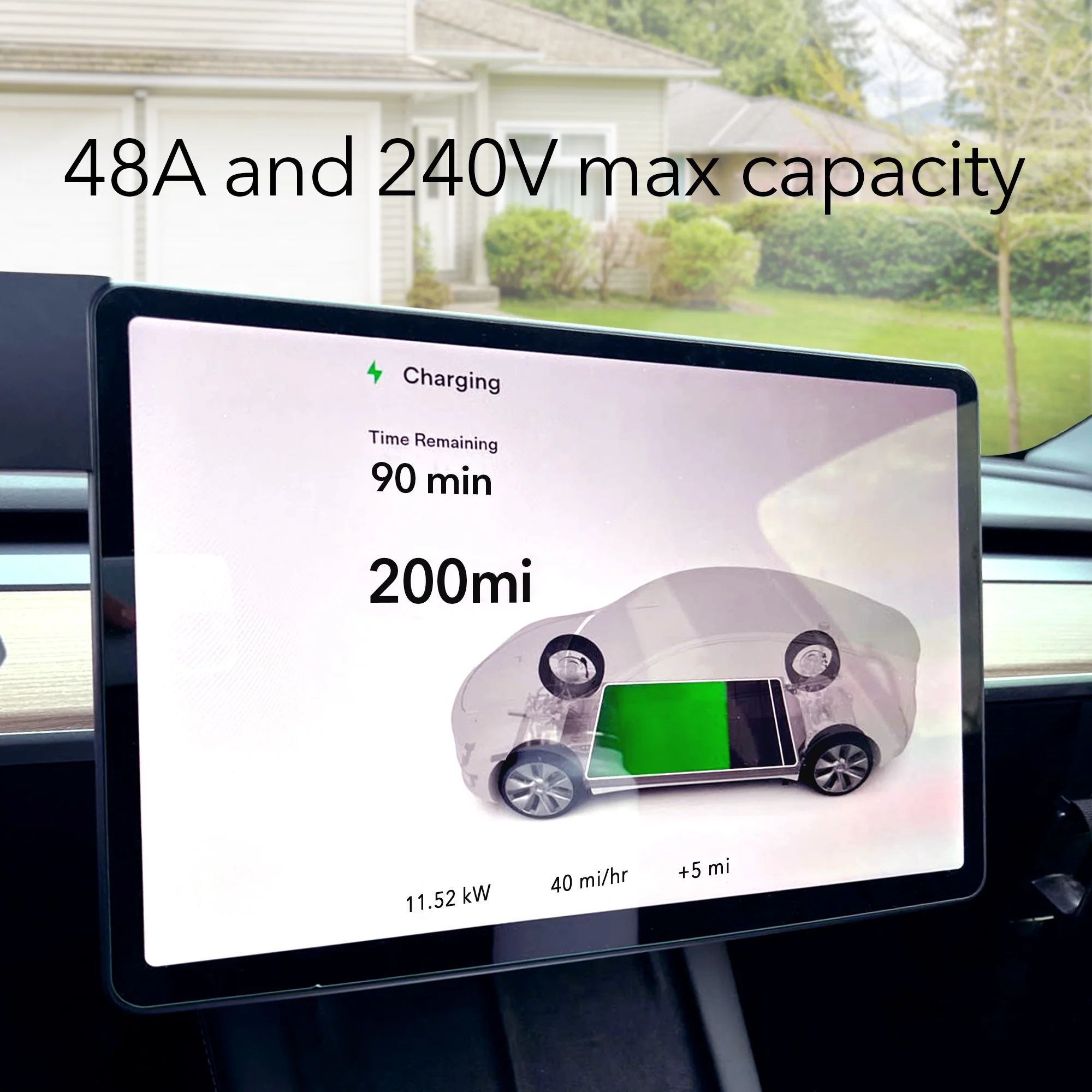

- Maximum Charging Power: Up to 48A / 240V / 11.52KW — no speed compromise compared to your existing setup.
- Compatible Chargers: Tesla High Powered Wall Connectors, all generations of Destination Chargers, and Mobile Connectors. Not compatible with Superchargers.
- Premium Conductivity: Copper alloy pins with silver plating for superior conductivity and long-term durability.
- Flame-Retardant Shell: Thermoplastic housing rated UL94 V-0 for safe operation under high-temperature conditions.
- All-Weather Ready: IP55 waterproof rating; operates in temperatures from -30°C to +50°C.
- Heavy-Duty Cable: 5M cable with anti-flame, pressure-resistant, abrasion-resistant, and oil-resistant protection.
- Built to Last: Withstands impact insertion forces >300N and over 10,000 plug-in/pull-out cycles.
- Safety Certified: CE, FCC, and RoHS certified.
Which Amperage Should I Choose?
- 16A — For Mobile Connectors or lower-output home circuits. Suitable for overnight charging.
- 32A — For most Tesla Wall Connectors on a standard 40A circuit breaker.
- 40A — For higher-output Wall Connectors on a 50A circuit breaker.
- 48A — For maximum-output Wall Connectors on a 60A circuit breaker. Fastest AC charging available.
Specifications
| Item | Tesla NACS Extension Cord |
| Rated Operating Current | 16A / 32A / 40A / 48A |
| Operating Voltage | 240V (AC) |
| Max Output Power | 11.52KW (48A × 240V) |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -30°C to +50°C |
| Impact Insertion Force | >300N |
| Mechanical Life | >10,000 cycles |
| Waterproof Rating | IP55 |
| Pin Material | Copper Alloy, Silver Plated |
| Shell Material | Thermoplastic, UL94 V-0 Flame Retardant |
| Cable Length | 5M (16.4 ft) |
| Cable Protection | Anti-flame, pressure-resistant, abrasion-resistant, oil-resistant |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide.
Frequently Asked Questions
What does this cable do?
This is a NACS to NACS extension cord. It plugs between your Tesla wall connector or Mobile Connector and your vehicle’s charging port, adding an extra 5M (16.4 ft) of reach — useful when your charger is mounted far from where you park.
Will it slow down my charging speed?
No — as long as you select the correct amperage rating that matches your wall connector output, there is no reduction in charging speed. Choose 48A for maximum-output setups.
Does the button on the cable open my Tesla’s charge port?
No — the button on this extension cable does not control the charge port door on your Tesla. Open the charge port via your Tesla app, touchscreen, or by pressing the charge port door directly.
Is it compatible with Superchargers?
No — this extension cord is for AC Level 2 charging only (Wall Connectors, Destination Chargers, Mobile Connectors). It is not compatible with Tesla Superchargers.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
Q&A
We provide assistance through email, live chat, and detailed installation guides. Additionally, we offer step-by-step tutorial videos featuring influencers to help you with the process.
We offer a one-year warranty (two years for some products).
Yes, the product can be removed after installation without affecting the original wiring harness of the vehicle.
We offer free returns and exchanges if there are any quality issues with the product upon receipt by the customer.
