Level 2 J1772/NACS EV Charger for Home Portable EV Charger with Screen Display Adjustable Current
안녕하세요,
2 영업일 이내에 답변을 받지 못하셨다면, 지연에 대해 진심으로 사과드립니다.
더 빠른 답변을 원하시면 WhatsApp (+1 (626) 412-7352 , +86 191 2063 1131 또는 +86 190 2201 1181) 으로 문의해 주세요. 위 번호로 직접 문자 메시지를 보내주셔도 됩니다.
귀하의 인내와 이해에 감사드립니다!
귀찮으시다면, "Tesstudio 공식 설치 서비스"를 위해 남부 캘리포니아 공식 매장을 방문하세요. 저희 전문가가 귀하의 Tesla 액세서리를 완벽하게 설치해 드립니다.
주소:
14761 Franklin Ave unit G, Tustin, CA 92780, 미국
친절히 알려드립니다: 저희는 제품 판매를 전문으로 하며, 전문가에게 설치를 의뢰하실 것을 권장합니다. 부적절한 설치로 인해 발생한 문제는 애프터서비스에 포함되지 않습니다. 양해해 주셔서 감사합니다.
1년 보증을 제공합니다. (인적 손상이 아닌 제품 문제에 대해서는 1년간 애프터 서비스를 제공합니다.)
모든 주문은 FedEx, USPS, UPS, SF Express 등 신뢰할 수 있는 운송업체를 통해 배송됩니다.
모든 주문에 무료 배송 혜택을 누리세요! 재고가 있는 상품은 1~2 영업일 이내에 처리 및 발송되며, 미국 국내 배송은 일반적으로 2~9 영업일이 소요됩니다.
사전 주문 상품이나 일시적으로 품절된 상품의 경우, 배송은 상품 페이지에 제공된 기간에 따라 진행됩니다.
옵션 선택

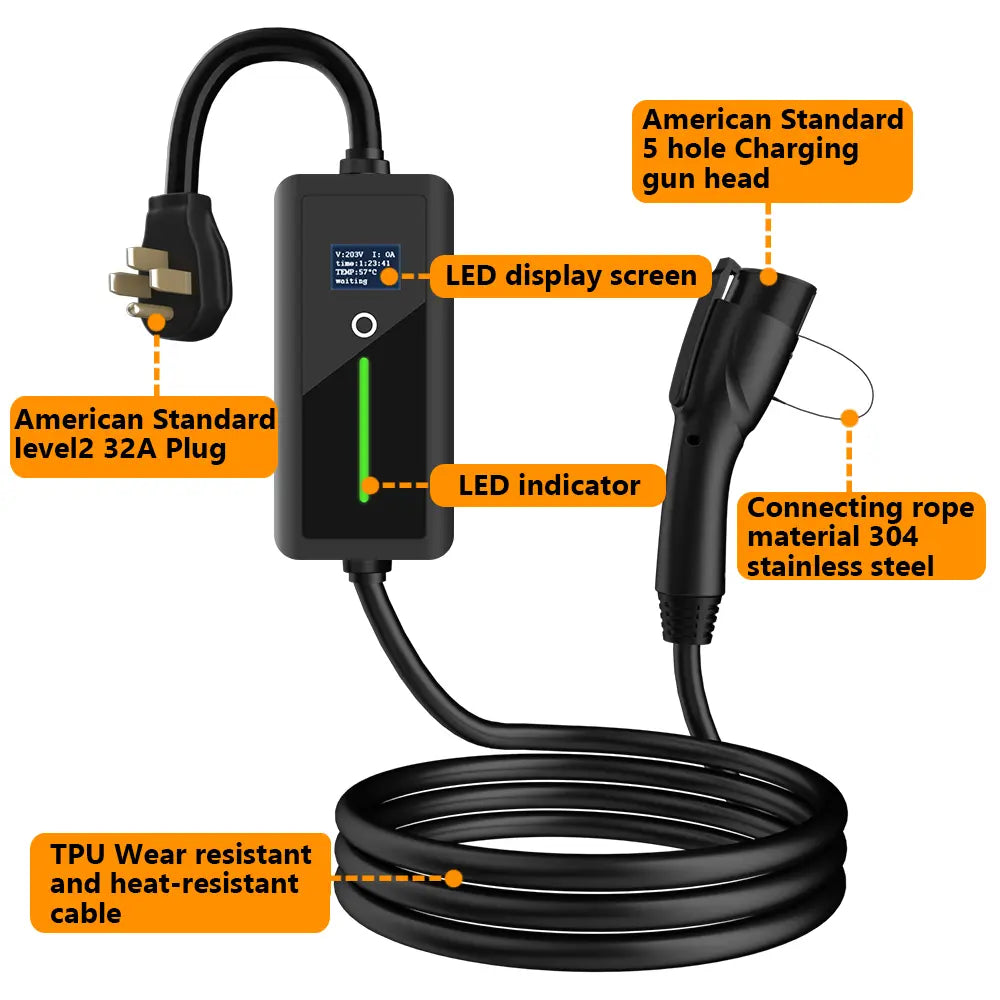

A smarter home EV charger — with a screen. This portable Level 2 charger features a 1.7-inch display showing real-time charging status, adjustable output current (8A to 32A), and dual charging port options (J1772 Type 1 or NACS/Tesla). Choose from 8 NEMA plug types to match your home outlet, and mount it on the wall or floor. IP67-rated charging gun and control box for all-weather outdoor use.
Key Features

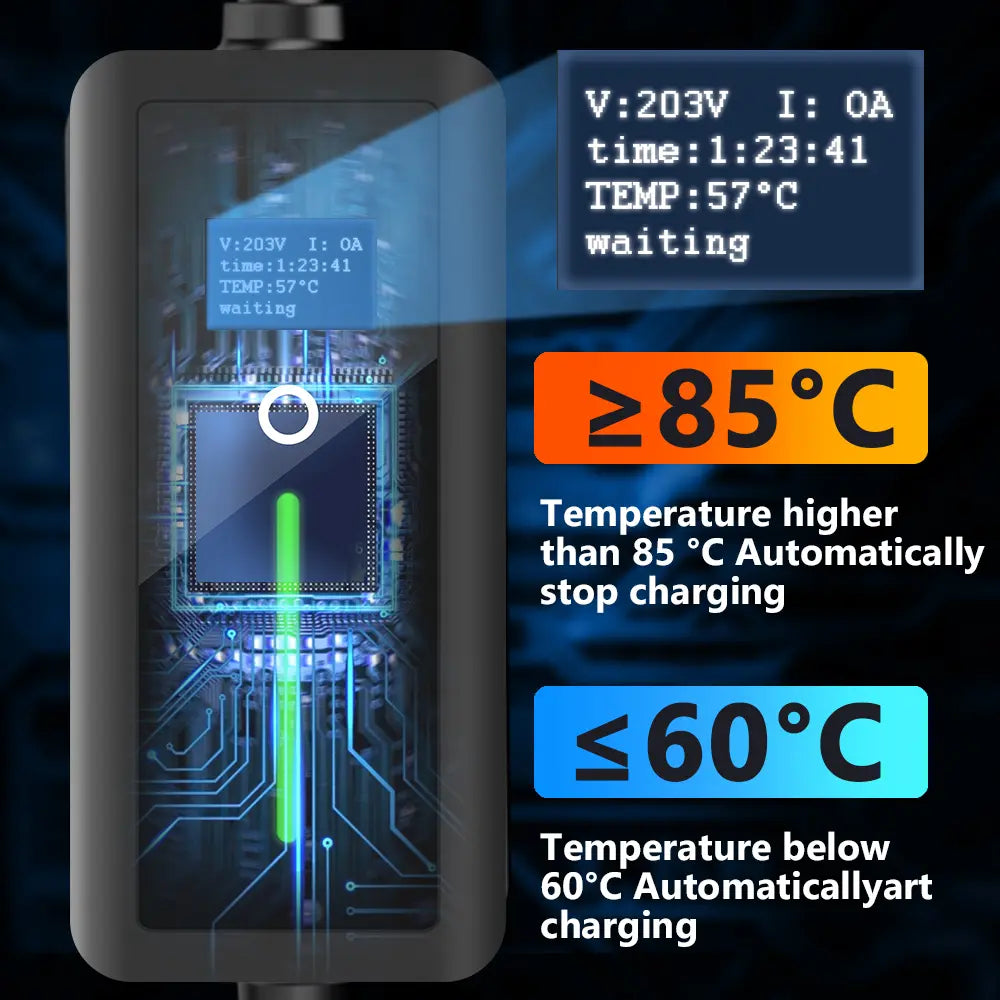

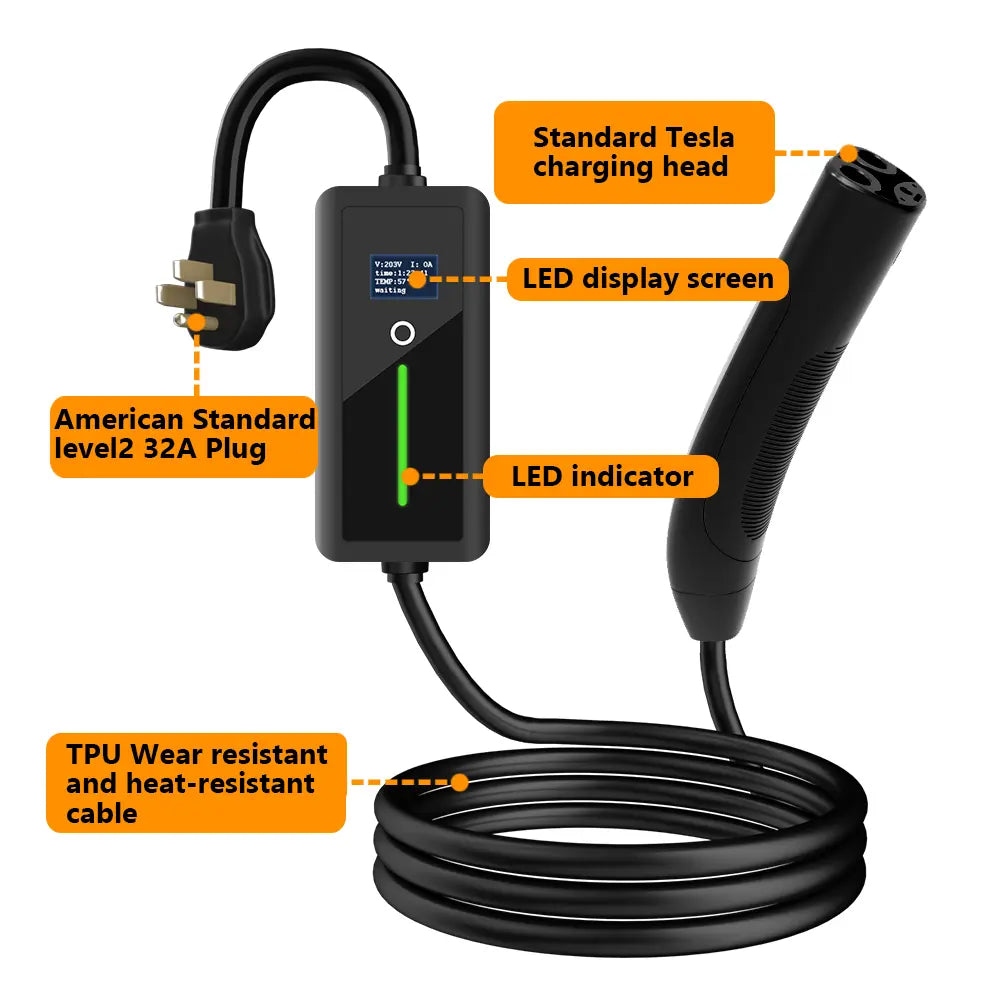

- 1.7-Inch Display Screen: Real-time charging status at a glance — no guessing, no app required. LED indicator light provides additional status feedback.
- Adjustable Output Current: Select from 8A, 10A, 13A, 16A, or 32A to match your vehicle’s onboard charger and home circuit capacity. Maximizes charging speed without overloading your electrical system.

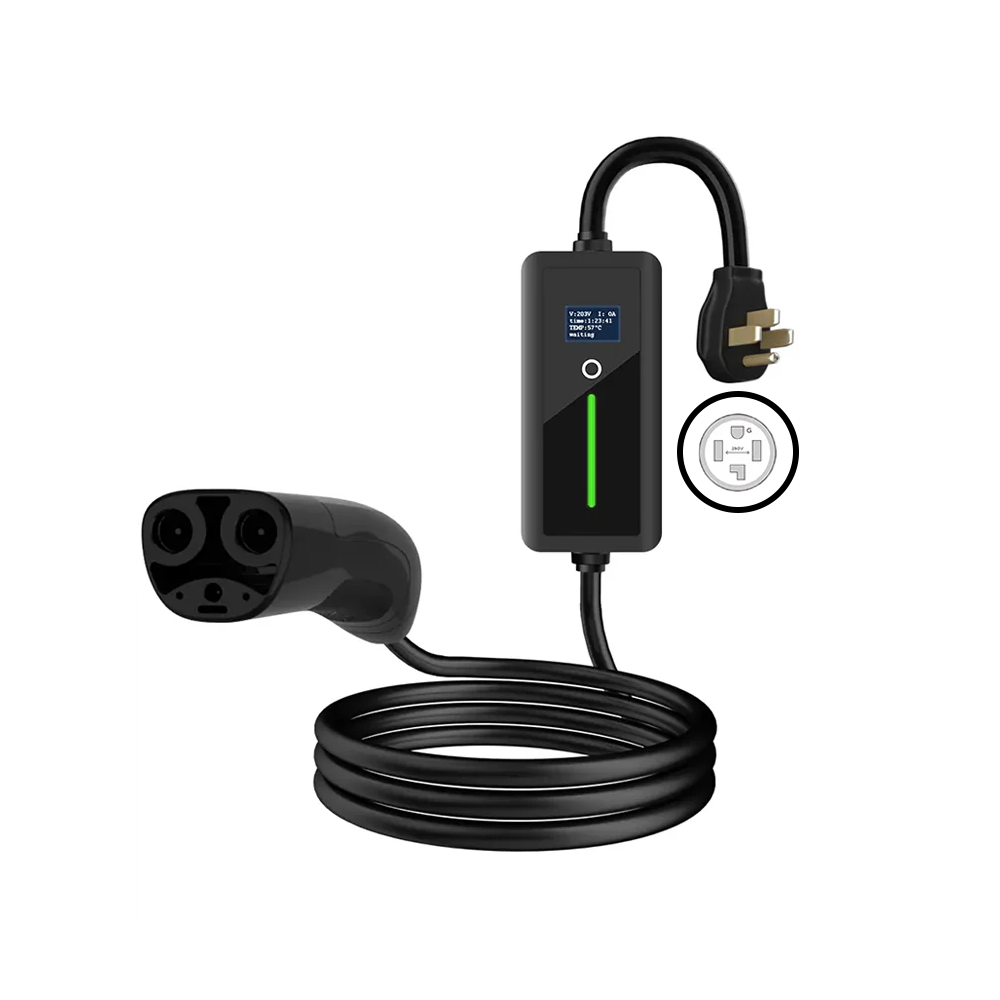

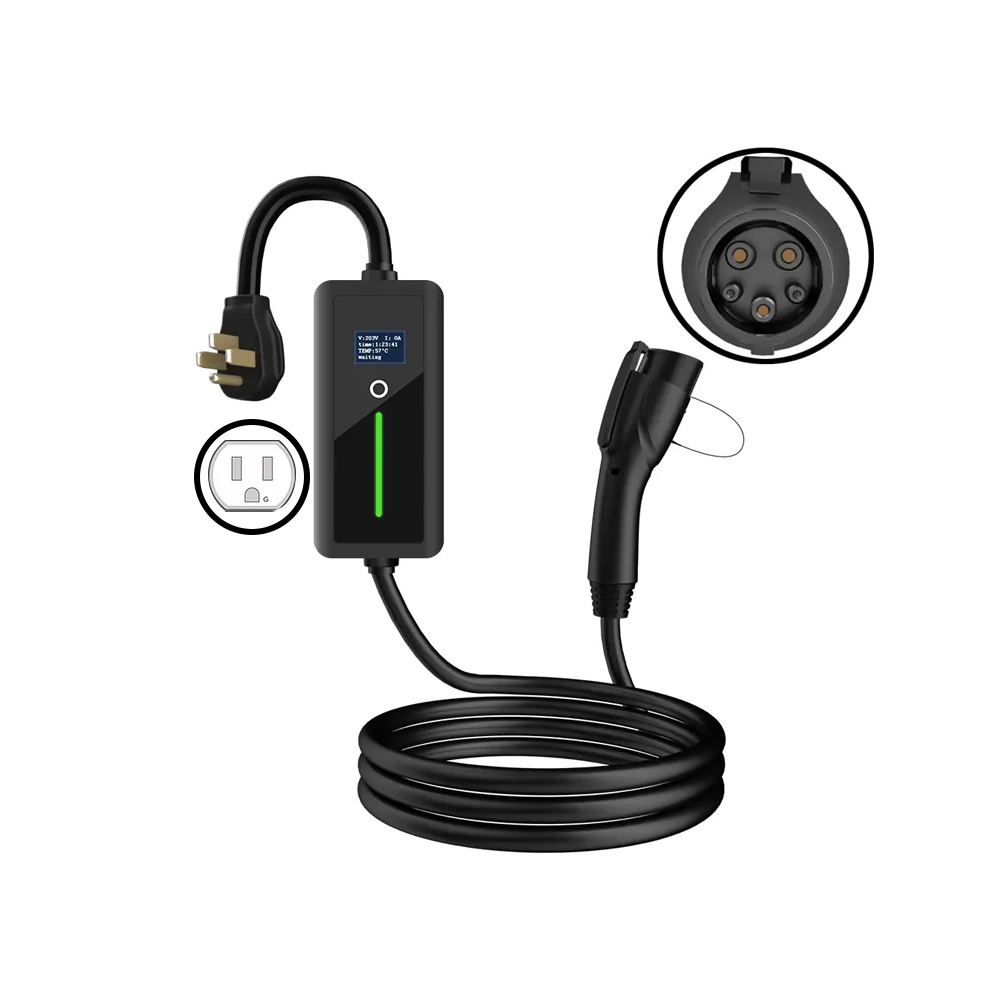

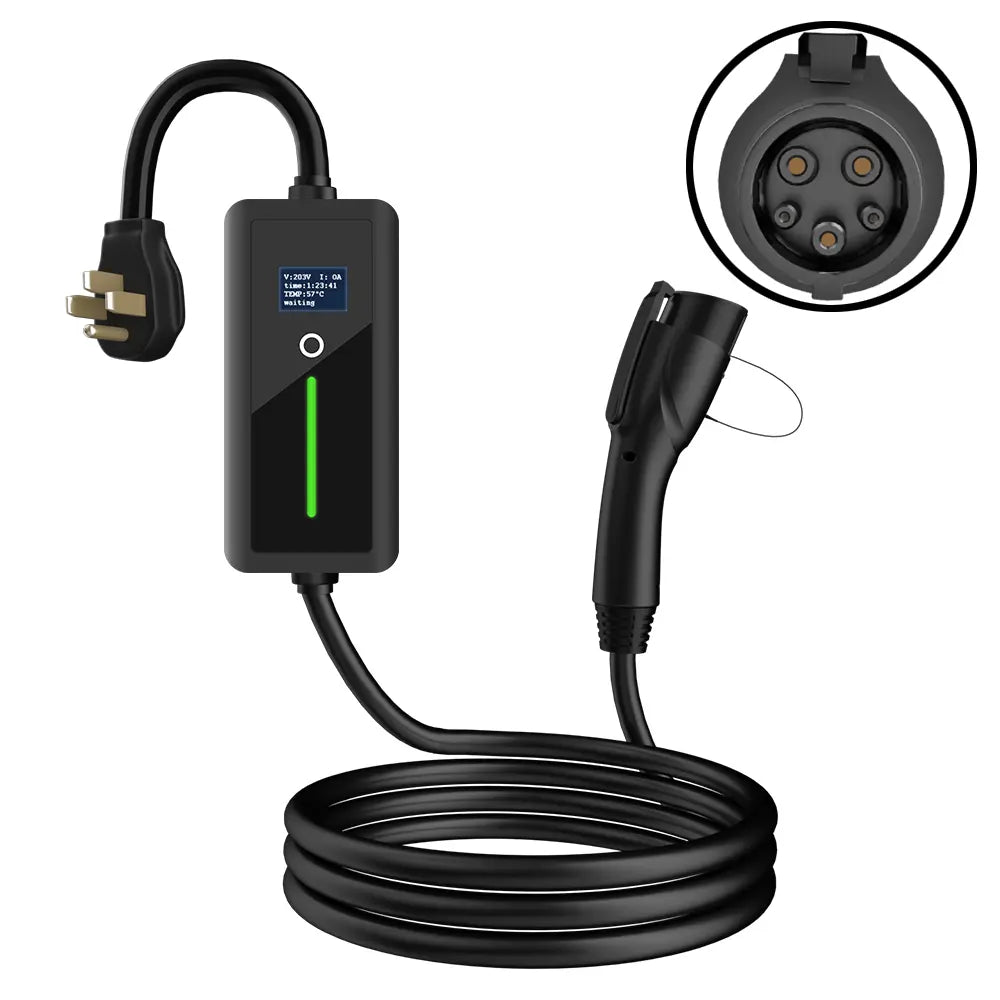

- Dual Charging Port Options: Available with J1772 (Type 1) for most EVs, or NACS for Tesla vehicles — select the correct port for your vehicle when ordering.
- 8 NEMA Plug Options: NEMA 5-15, 5-20, 6-15, 6-20, 6-50, 10-30, 14-30, or 14-50 — choose the plug that matches your existing home outlet for a direct, no-adapter connection.
- 3.5KW or 7KW Power: 3.5KW for standard 120V/low-amp circuits; 7KW for 240V circuits for faster overnight charging.
- IP67 Protection: Both the charging gun and control box are IP67-rated — fully protected against dust and temporary water immersion for reliable outdoor use in all weather.
- Flexible Installation: Supports floor-mounted or wall-mounted installation using included screws — fits any garage or parking setup.
- 16.4 ft (5M) Cable: Generous cable length reaches most parking positions without extension cables.

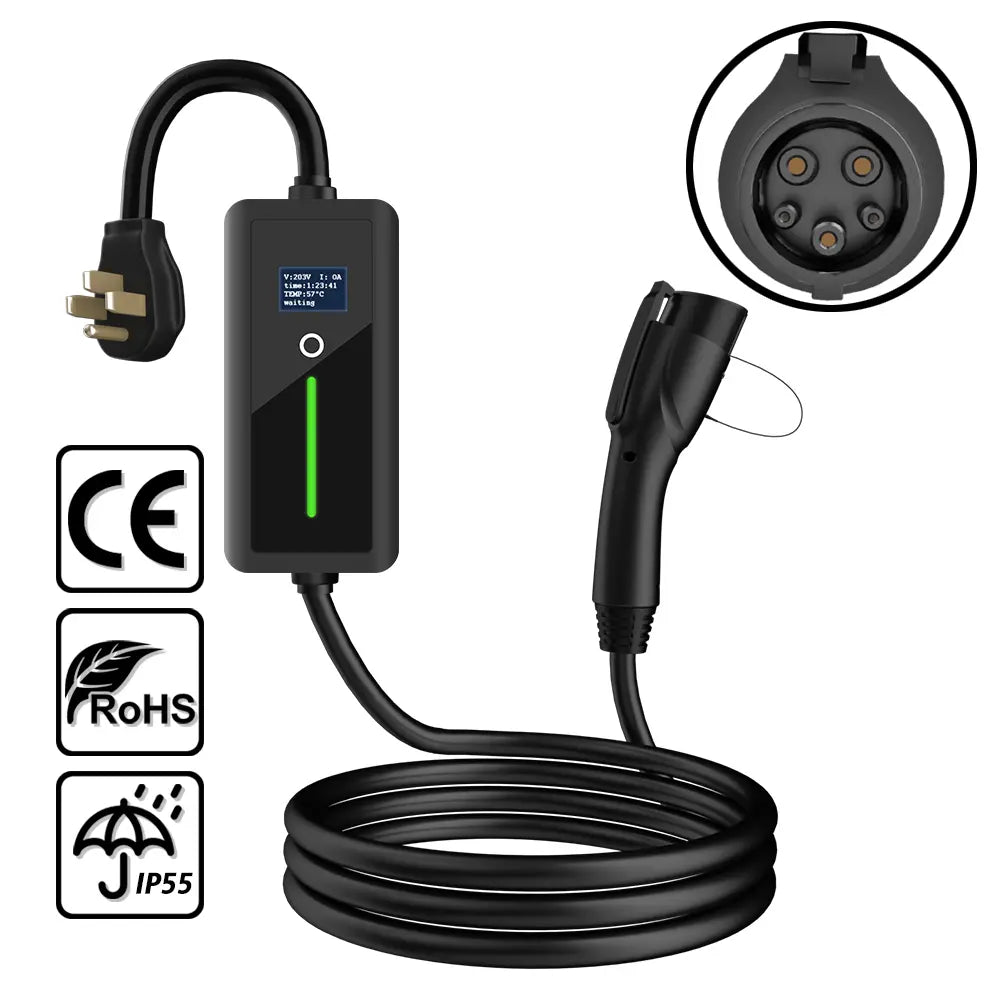

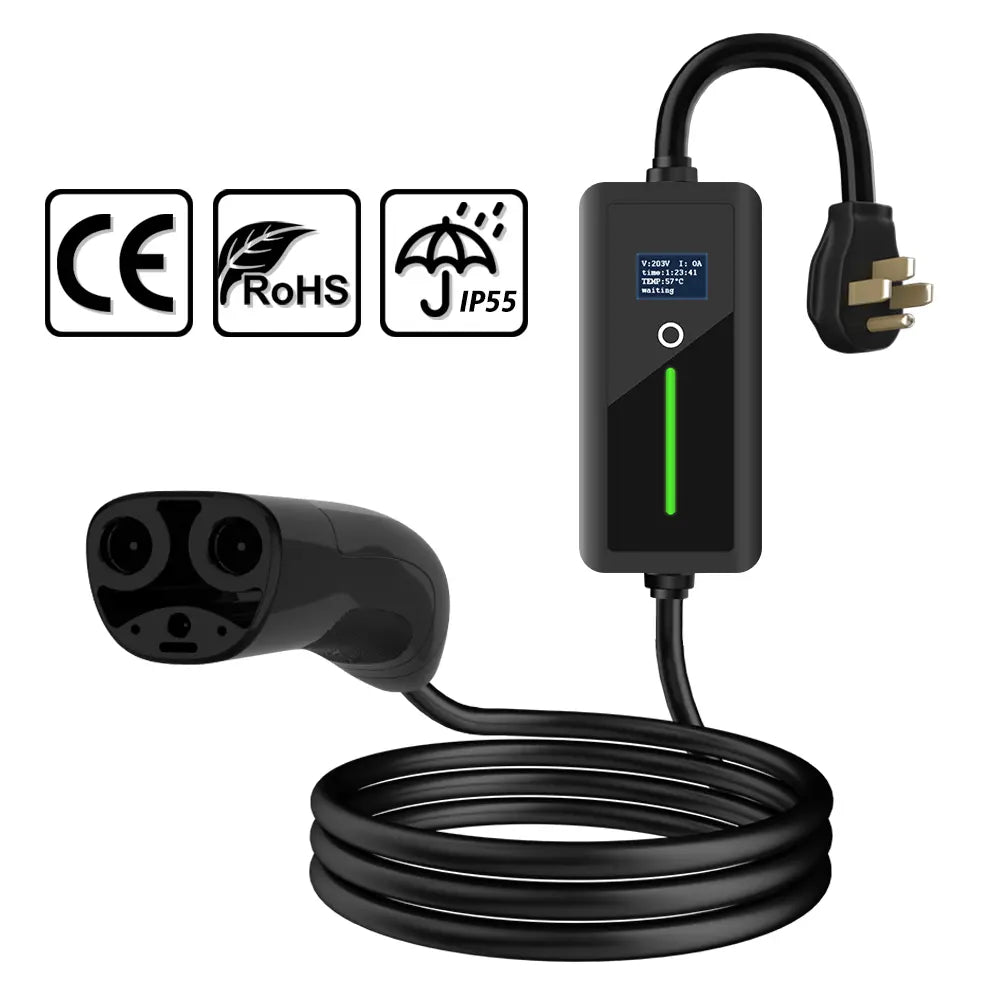

- Certified Safety: CE, FCC, and RoHS certified; UL94 V-0 flammability rating for safe, compliant home charging.
Specifications
| Item | Level 2 J1772 / NACS EV Charger |
| Charging Port | J1772 (Type 1) or NACS / Tesla (select when ordering) |
| Power Plug Options | NEMA 5-15 / 5-20 / 6-15 / 6-20 / 6-50 / 10-30 / 14-30 / 14-50 |
| Max Power | 7.8KW |
| Input Voltage | AC 250V, 50/60Hz |
| Output Voltage | AC 250V |
| Output Current | 8A / 10A / 13A / 16A / 32A (adjustable) |
| Cable Length | 16.4 ft (5M) |
| Operating Temperature | -30°C to +50°C |
| Operating Altitude | <2,000M |
| Protection Rating | IP67 (Charging Gun & Control Box) |
| Installation | Floor-mounted or Wall-mounted (screws included) |
| Interface | 1.7-inch Display Screen + LED Indicator |
| Standard | SAE J1772 / Tesla NACS |
| Flammability Rating | UL94 V-0 |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide.
Frequently Asked Questions
Which charging port should I choose — J1772 or NACS?

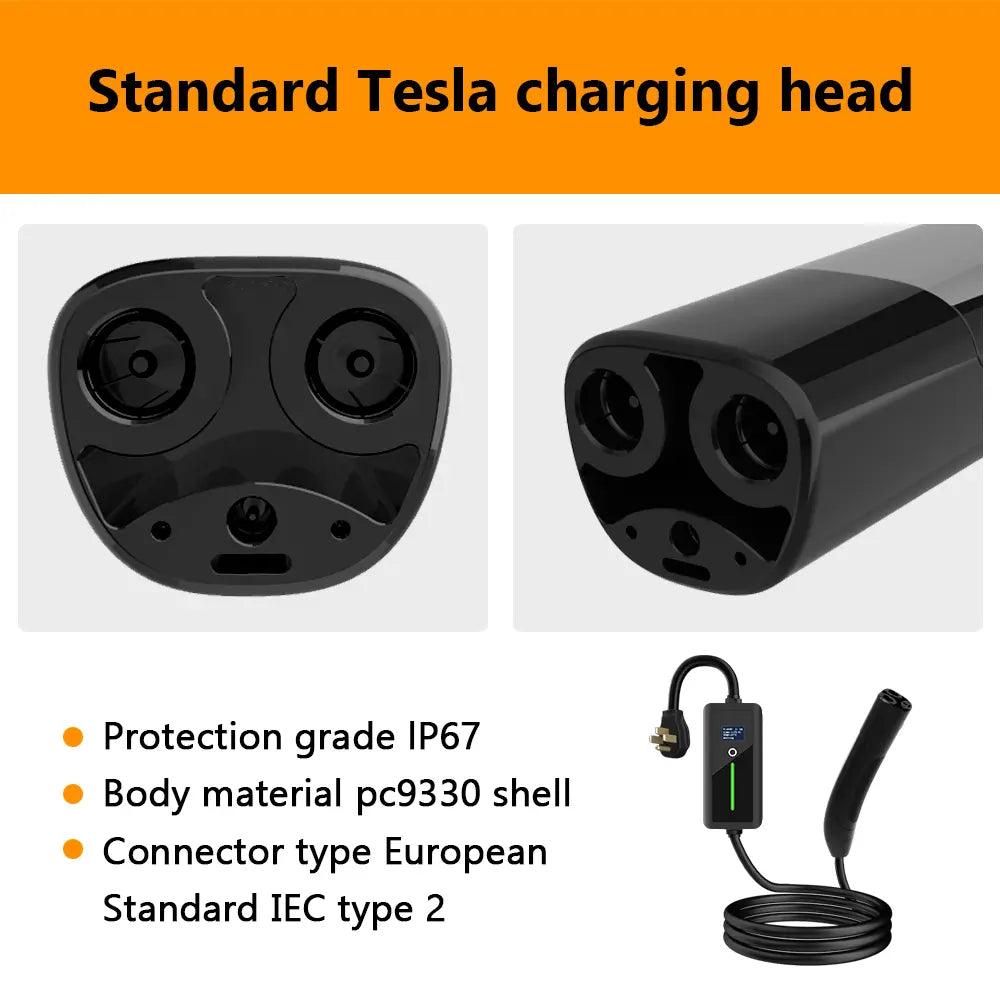

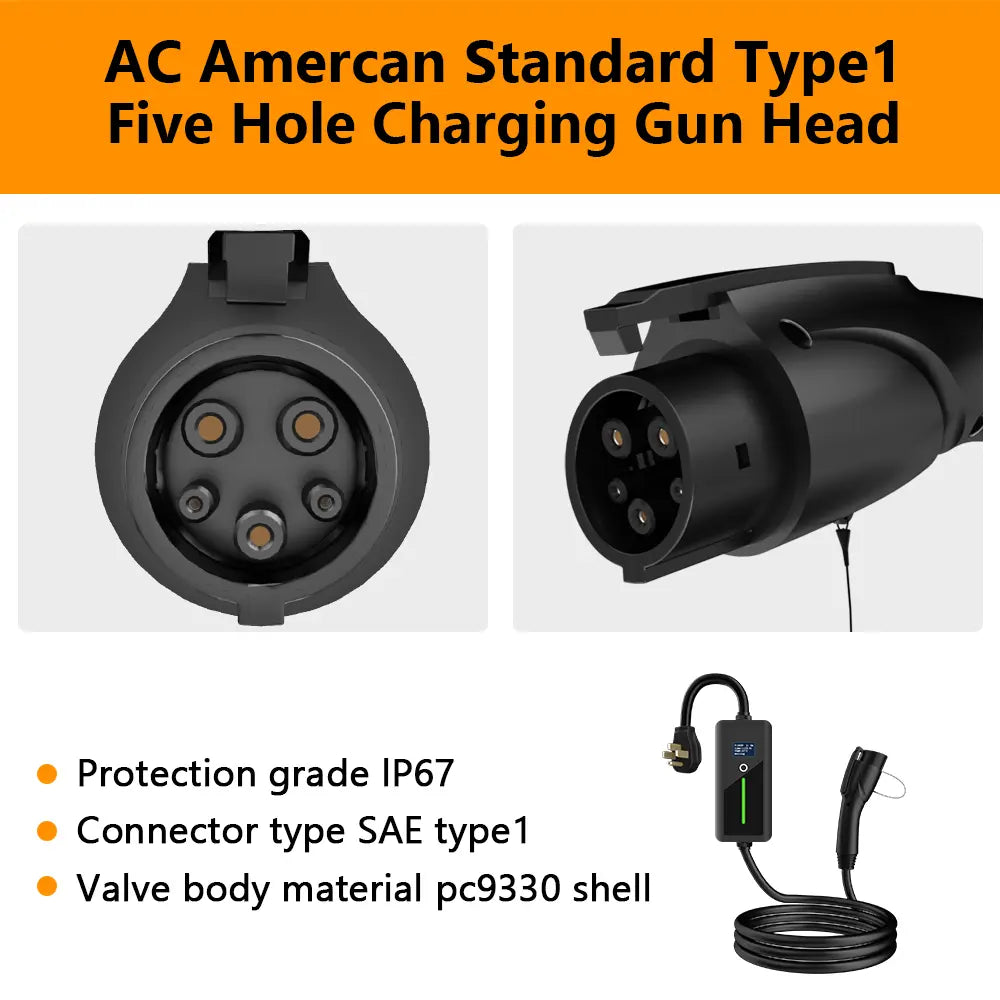

Select NACS if you own a Tesla (Model 3, Model Y, Model S, Model X, or Cybertruck). Select J1772 (Type 1) if you own a non-Tesla EV with a J1772 port, or if you want a charger compatible with most other EVs. The two versions are not interchangeable.
Which NEMA plug should I choose?
Choose the plug that matches the outlet already installed in your garage or parking area: NEMA 14-50 is the most common for Level 2 EV charging (240V, 50A). NEMA 5-15 is a standard household outlet (120V, 15A) for slower Level 1 charging. If unsure, check your outlet or consult an electrician before ordering.
What’s the difference between 3.5KW and 7KW?
3.5KW is suitable for lower-amperage circuits (e.g., NEMA 5-15, 5-20, 6-15, 6-20) and charges at a slower rate — ideal if your home wiring doesn’t support 240V. 7KW requires a 240V circuit (e.g., NEMA 14-50, 6-50, 14-30, 10-30) and charges significantly faster — most Tesla owners will prefer the 7KW option for overnight home charging.
Can I use this outdoors?
Yes — both the charging gun and control box are IP67-rated, meaning they are fully protected against dust and temporary water immersion. The charger is suitable for outdoor installation in garages, driveways, and parking areas in all weather conditions.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
