Access the entire J1772 charging network with your Tesla. This compact adapter plugs into any SAE J1772 Level 1 or Level 2 charging station and connects directly to your Tesla’s NACS port — rated at 80A / 250V AC for maximum charging speed. Ultrasonic-welded silver pins, IP55 weatherproofing, and an exceptional operating range of -40°C to +85°C for reliable use in any climate.
⚠️ Important: Compatible with Level 1 and Level 2 J1772 AC charging only. Not compatible with DC fast chargers (CCS / CHAdeMO / Supercharger). For use in the US and Canada market.
Key Features
- Connector Type: SAE J1772 / Type 1 (charger side) → NACS / Tesla (vehicle side)

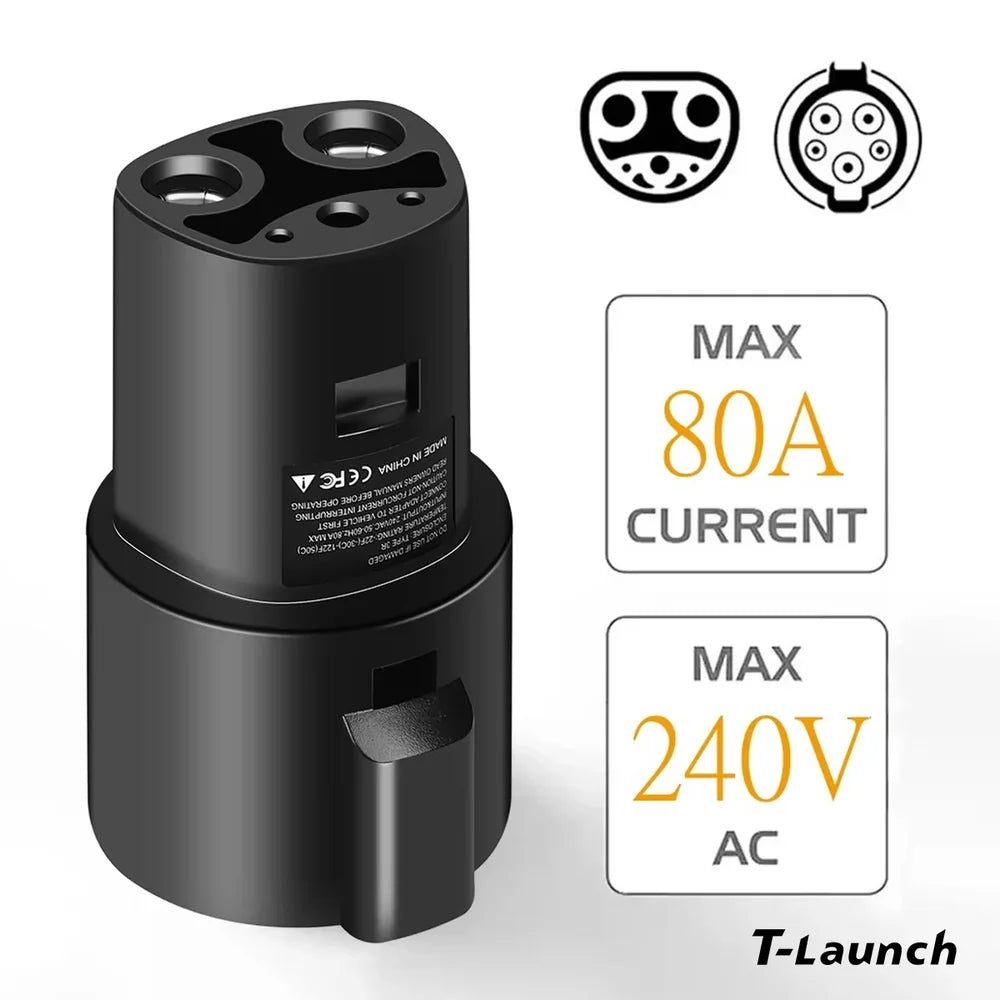

- 80A / 250V AC Rating: Supports the maximum output of virtually all J1772 Level 2 stations — no bottleneck, no derating.
- Ultrasonic-Welded Silver Pins: The silver-plated pins are ultrasonically bonded to the shell, preventing any risk of pin detachment even after thousands of plug cycles. Built to last.
- Smooth Plug & Release: Precision-engineered connector geometry ensures effortless insertion and clean release every time — no sticking, no forcing.
- Full J1772 Compatibility: Works with all Level 1 and Level 2 J1772 charging stations — public chargers, home wall connectors, and commercial charging networks across the US and Canada.
- Wide Operating Temperature: Rated from -40°C to +85°C — significantly wider than most adapters, ensuring reliable performance in extreme cold and heat.
- IP55 Weatherproof: Protected against dust and water jets for outdoor use in rain and all weather conditions.
- 10,000+ Plug Cycle Durability: Mechanical life rated for over 10,000 plug/unplug cycles for long-term daily use.

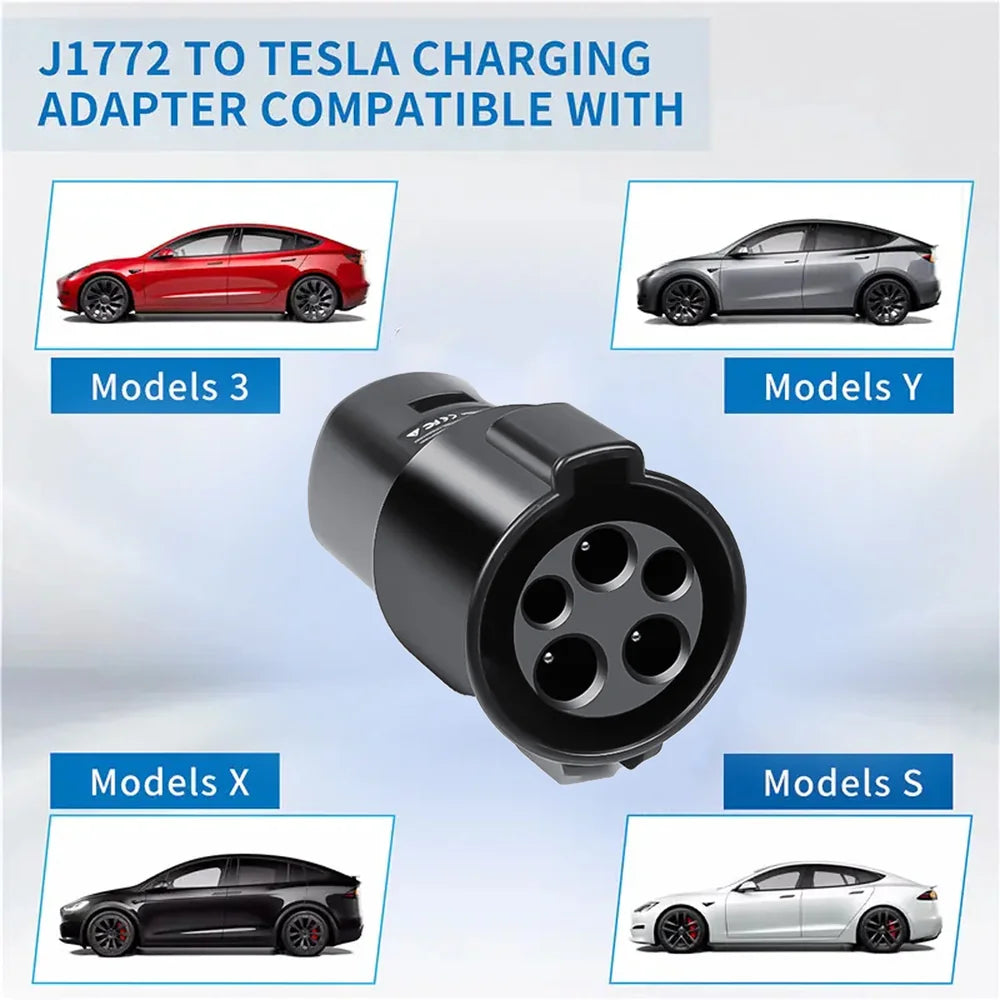

- Compatible with All Tesla Models: Model 3, Model Y, Model S, Model X, and Cybertruck.
Specifications
| Item | J1772 to Tesla (NACS) Adapter |
| Rated Operating Current | 80A |
| Operating Voltage | 110V – 250V AC |
| Charging Level | Level 1 & Level 2 AC only |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V / 5s |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -40°C to +85°C |
| Insertion Force | 45N – 80N |
| Mechanical Life | >10,000 plug cycles |
| Waterproof Rating | IP55 |
| Flame Retardant Grade | UL94 V-0 |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide.
Frequently Asked Questions
What does this adapter do?
This adapter allows your Tesla to charge at any SAE J1772 Level 1 or Level 2 charging station. Connect the J1772 station cable to the adapter, then plug the adapter into your Tesla’s NACS port. Charging starts automatically — no app or configuration needed.
Will it work with Tesla Superchargers?
No — this adapter is for AC Level 1 and Level 2 J1772 chargers only. Tesla Superchargers use DC fast charging via the NACS port directly and do not require any adapter.
Why is the 80A rating significant?
Most J1772 Level 2 stations output up to 80A. An adapter rated at 80A handles the full output of these stations without derating or throttling — ensuring you always charge at the maximum speed your Tesla’s onboard charger supports.
What makes the ultrasonic-welded pins better?
Ultrasonic welding creates a molecular bond between the silver pin and the adapter shell — far stronger than mechanical press-fit connections used in cheaper adapters. This eliminates the risk of pin loosening or detachment over time, even after thousands of plug cycles.
Is it safe to use outdoors in rain?
Yes — the IP55 rating protects against dust and water jets from any direction. The adapter is also rated to operate down to -40°C, making it reliable in extreme cold weather conditions.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
