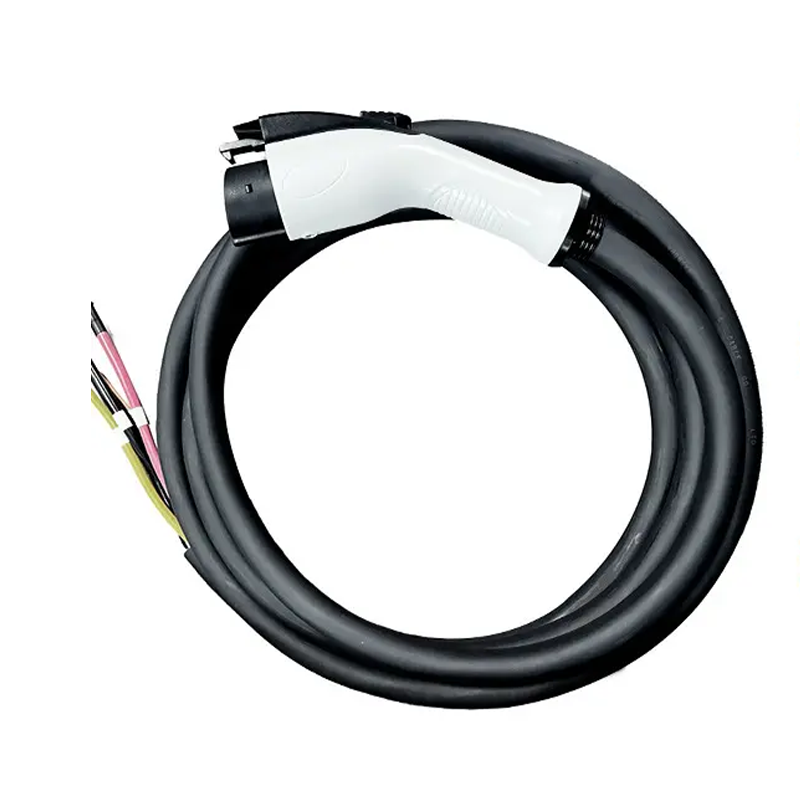

Reach further without moving your charger. This J1772 extension cable adds 16.4 ft (5M) of reach between your Level 2 J1772 charging station and your EV — ideal when your charger is mounted too far from your parking spot. J1772 male plug on one end, J1772 female socket on the other. Rated at 32A / 240V with silver-plated copper alloy pins and IP55 weatherproofing. Available in Black, White, and Orange.
Key Features
- J1772 to J1772 Extension: Male J1772 plug connects to your charging station; female J1772 socket connects to your vehicle’s existing charge cable. Extends reach by 16.4 ft (5M) without any adapters.
- 32A / 240V Rated: Handles the full output of most Level 2 J1772 home and public charging stations without derating.

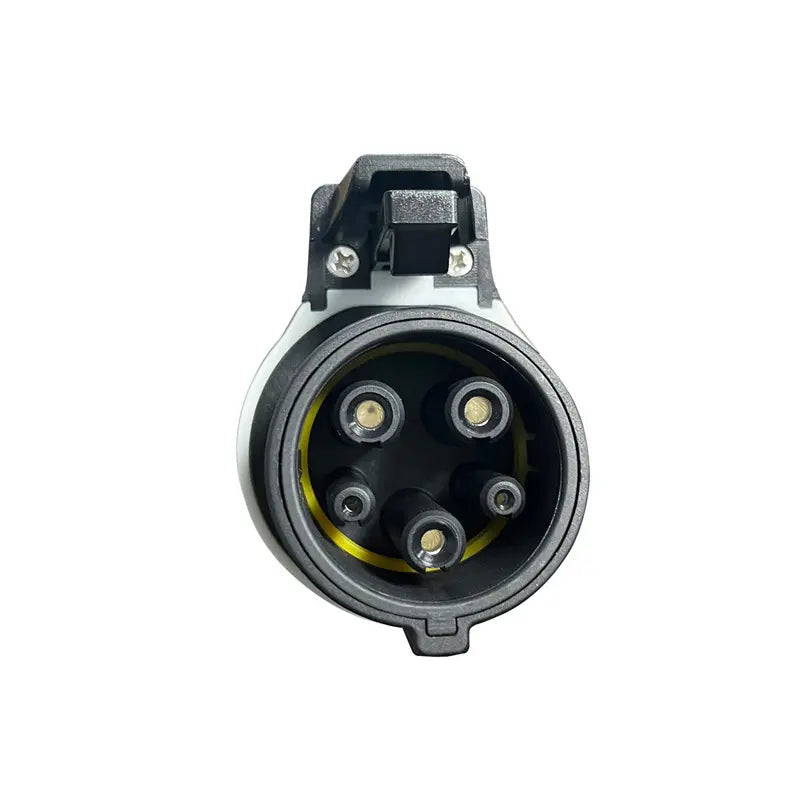

- Silver-Plated Copper Alloy Pins: Superior conductivity and reduced heat generation for safe, efficient power transfer at high current levels.

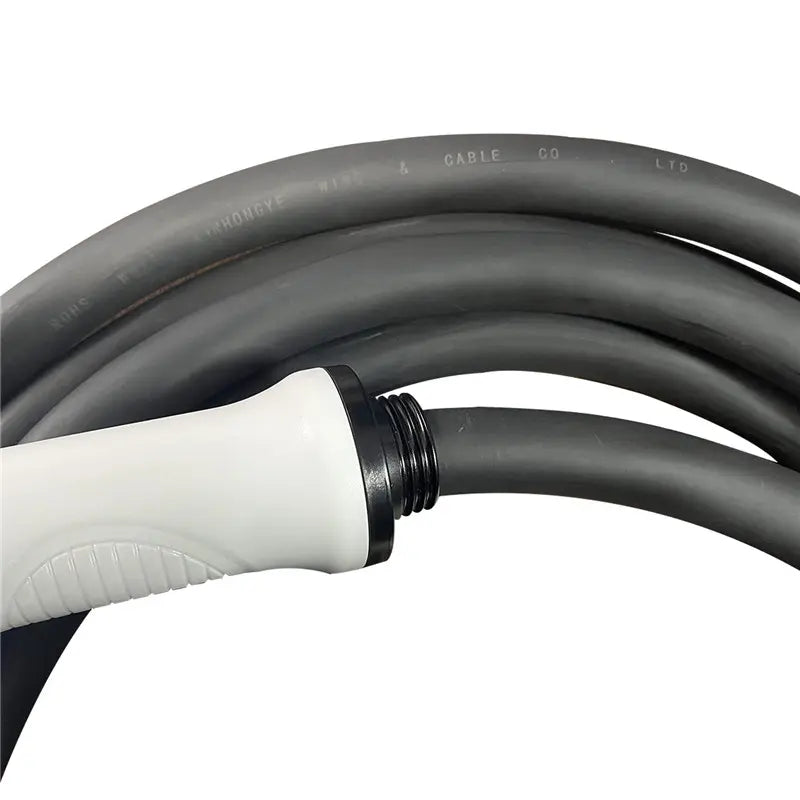

- Robust Cable Construction: Flame-retardant, pressure-resistant, abrasion-resistant, and oil-resistant cable jacket — built for long-term outdoor use.
- IP55 Weatherproof: Protected against dust and water jets for reliable outdoor use in rain and all weather conditions.
- 10,000+ Plug Cycle Durability: Rated for over 10,000 plug/unplug cycles for long-term daily use without degradation.
- All-Weather Flexibility: Maintains cable flexibility from -30°C to +50°C — no stiffening or cracking in cold weather.
- Three Color Options: Black, White, and Orange — choose to match your garage setup or improve visibility.
- Universal J1772 Compatibility: Works with all SAE J1772 Level 2 charging stations and all J1772-compatible EVs, including Tesla (with J1772 adapter).
Specifications
| Item | J1772 Extension Cable |
| Connector Type | SAE J1772 Male → SAE J1772 Female |
| Rated Operating Current | 32A |
| Operating Voltage | 110V – 240V AC |
| Cable Length | 16.4 ft (5M) |
| Pin Material | Copper Alloy with Silver Plating |
| Shell Material | Thermoplastic, Flame Retardant UL94 V-0 |
| Plug Cycle Durability | >10,000 plug/unplug cycles |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | <50K |
| Operating Temperature | -30°C to +50°C |
| Impact Insertion Force | >300N |
| Waterproof Rating | IP55 |
| Certifications | CE / FCC / RoHS |
Why Tesstudio
- Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts.
- Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices.
- 30-Day Risk-Free Returns: Not the right fit? Send it back within 30 days for a full refund.
- 1-Year Warranty: Covered against manufacturing defects with responsive customer support.
- Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide.
Frequently Asked Questions
What does this cable do exactly?
This is a J1772 extension cable — it extends the reach between your Level 2 J1772 charging station and your EV by 16.4 ft (5M). The male J1772 plug connects to your charging station outlet, and the female J1772 socket connects to your vehicle’s existing J1772 charge cable. It does not convert between connector types.
Can I use this with my Tesla?
Yes — if your Tesla uses a J1772 adapter to connect to Level 2 stations, this extension cable works seamlessly. For Tesla vehicles with NACS ports, you’ll still need your J1772-to-NACS adapter in addition to this cable.
Why is there an Orange color option?
The Orange version improves cable visibility in low-light garage environments, making it easier to spot and avoid tripping hazards. It’s a popular choice for busy garages or shared charging setups.
Is it safe to use outdoors in rain?
Yes — the IP55 rating protects against dust and water jets from any direction, making it suitable for outdoor use in rain. The cable also maintains flexibility down to -30°C for reliable cold-weather use.
What’s covered under warranty?
All Tesstudio charging products come with a 1-year manufacturer warranty against defects. Contact our support team for any issues.
