Tesla Gen 2 Mobile Connector NEMA 14-50 Adapter | 32A Level 2 Charging UL/ETL Certified

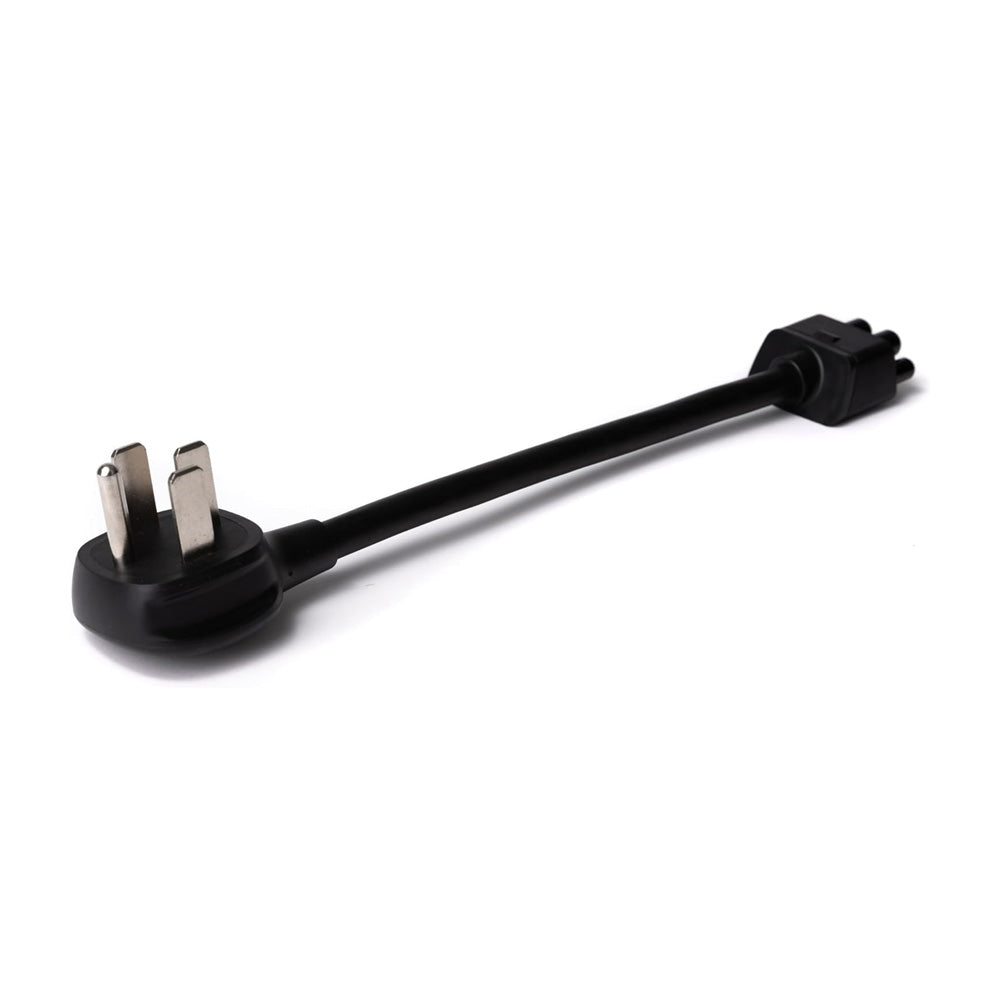

Tesla Gen 2 Mobile Connector — NEMA 14-50 Adapter

Power up your Tesla with confidence. This premium NEMA 14-50 charging adapter from Tesstudio is UL/ETL-certified, thermal-protected, and engineered for safe, fast Level 2 charging at home or away. Simply swap your standard 5-15 adapter on your Tesla Gen 2 Mobile Connector and boost your charge rate to 32A.

Specifications

• Model: NEMA 14-50
• Input Voltage: 120/240 VAC
• Max Amperage: 32A
• Charge Range Per Hour: 20–30 miles

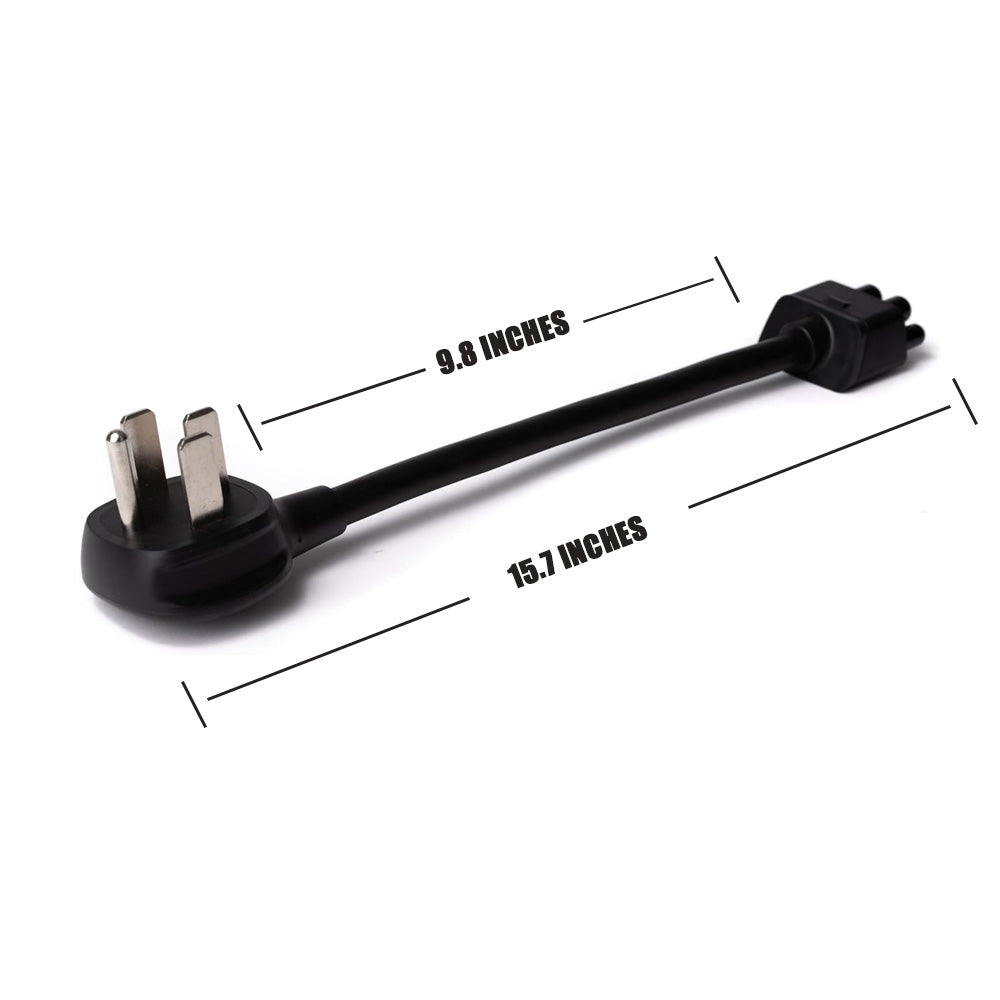

• Length (End-to-End): 15.7"
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• IP Rating: IP54
• Certification: UL 817 and CSA C22.2 No. 21 (ETL Listed, Control No. 5026085)
• Charging Port: Tesla (NACS)

Key Features

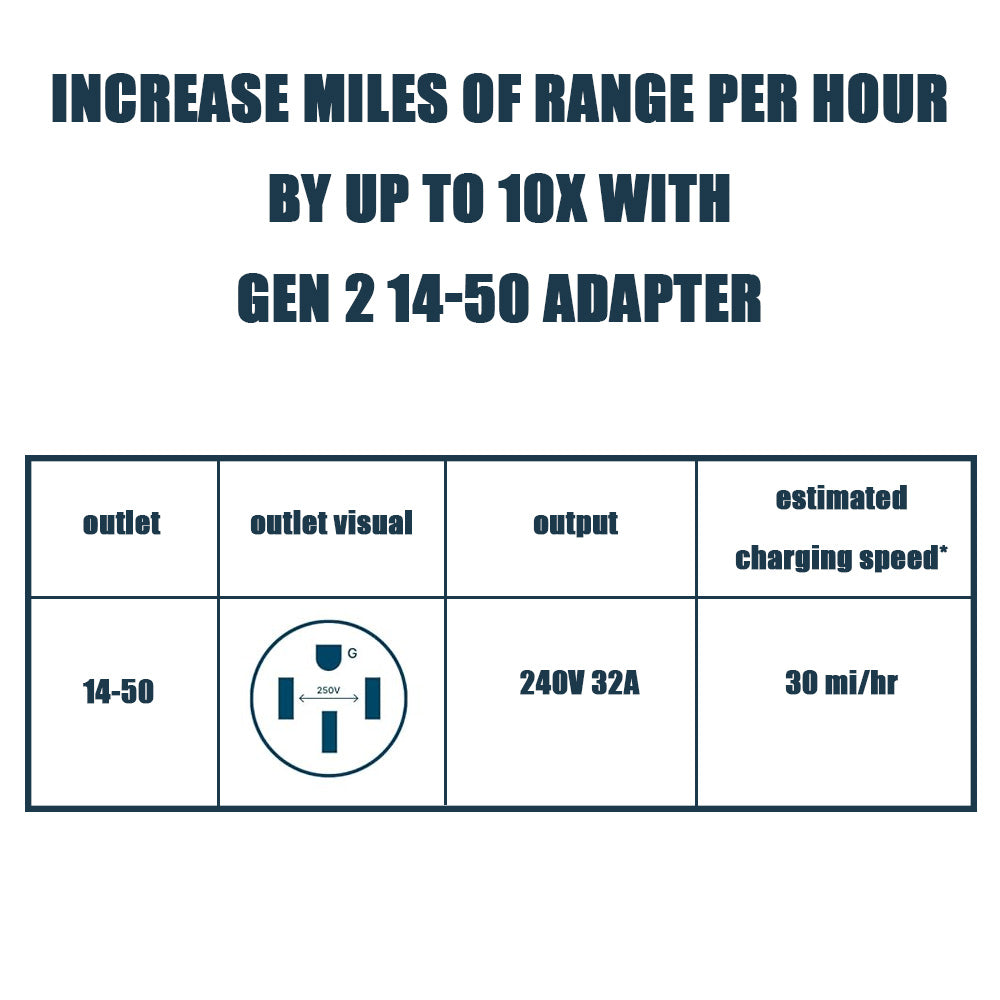

• Level 2 Charging at 32A: Replaces the standard 5-15 adapter on your Tesla Gen 2 Mobile Connector for significantly faster home charging
• UL/ETL Safety Certified: Nickel-plated connectors for corrosion resistance, integrated thermal sensor with auto-shutoff for safe operation
• IP54 Rated: Protected against dust and splash water for reliable indoor and outdoor use
• Compact Design: 15.7" end-to-end length for easy handling and storage
• Temperature Self-Adjustment: Built-in sensor communicates operating temperature to your Tesla — the vehicle automatically adjusts charge strength if maximum temperature (50°C / 122°F) is reached. This is a normal safety feature.

Usage Guide

1. Attach the adapter to the Mobile Connector controller — push in until it snaps into place
2. Plug the adapter into a NEMA 14-50 wall receptacle (must be firmly secured and undamaged)
3. Ensure the adapter plug is fully inserted — an incomplete connection may pose a safety hazard
4. Connect the Mobile Connector handle to your Tesla's charge port (vehicle must be unlocked)
5. Confirm the Tesla charge indicator turns green
6. To unplug: press the Mobile Connector handle button until the charge port light turns white, then unplug

Safety Information

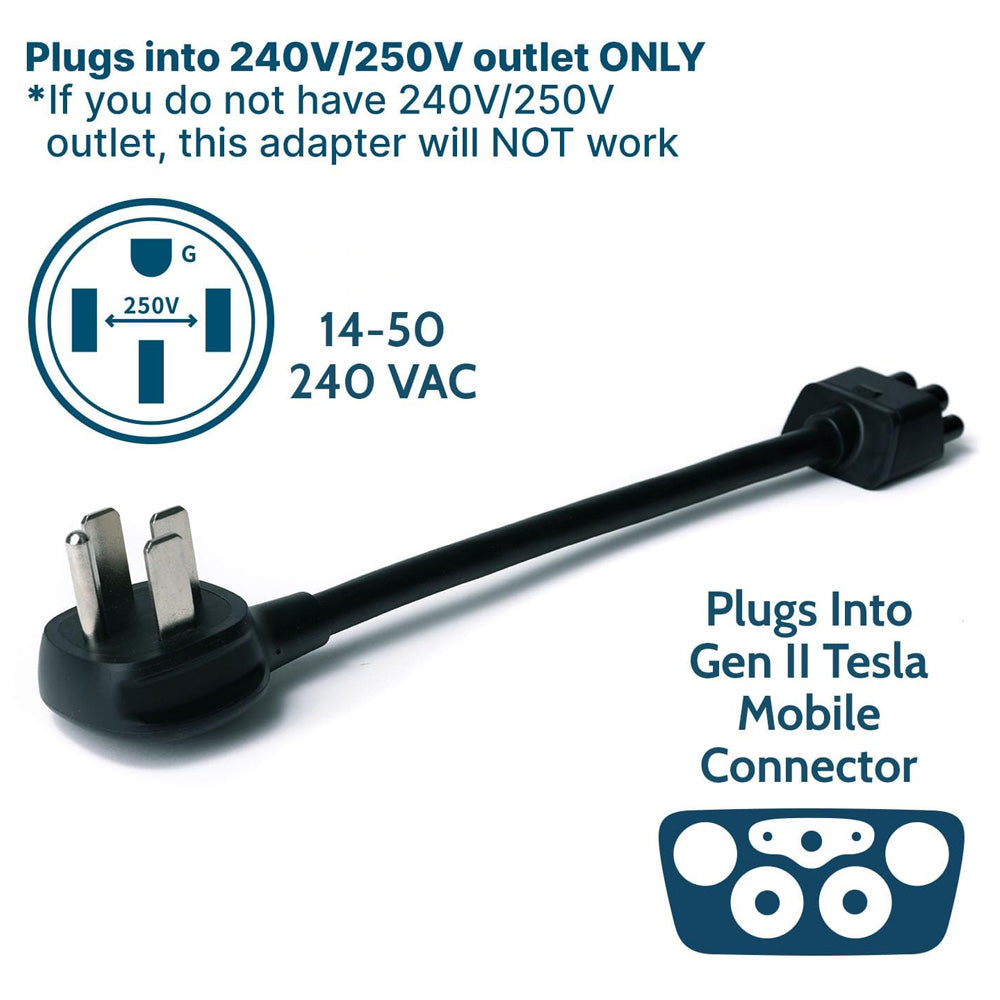

• Ensure the adapter matches the household outlet you intend to use
• Regularly inspect adapter and charging ports for dirt or debris — do not use if ports are damaged
• Do not insert foreign objects into the port
• Do not expose the adapter to moisture or high temperatures
• Always use a UL / ETL / SGS certified connector

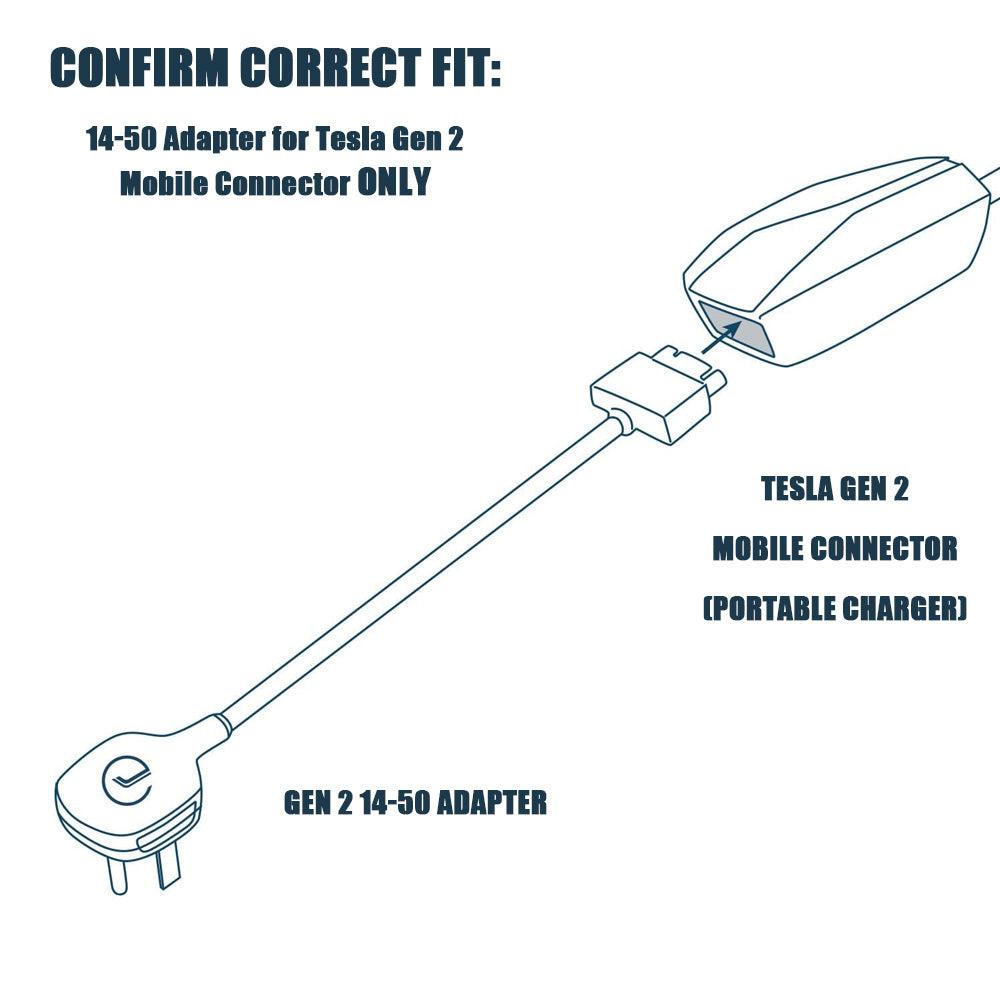

• Warning: Using this adapter with a Gen 1 Mobile Connector can result in fire, personal injury, or property damage

Why Tesstudio

• Tesla-Specific Engineering: Every product is custom-designed and tested specifically for Tesla vehicles — not generic, retrofitted parts
• Direct from the Maker: We design, source, and ship in-house, eliminating middlemen so you get premium quality at fair prices
• Backed by 30-Day Returns: Try it risk-free. Send it back within 30 days for a full refund
• 1-Year Warranty: All products are covered against manufacturing defects with responsive customer support
• Trusted by 100,000+ Tesla Owners: Join the Tesstudio community — the upgrade brand recommended by Tesla owners worldwide
